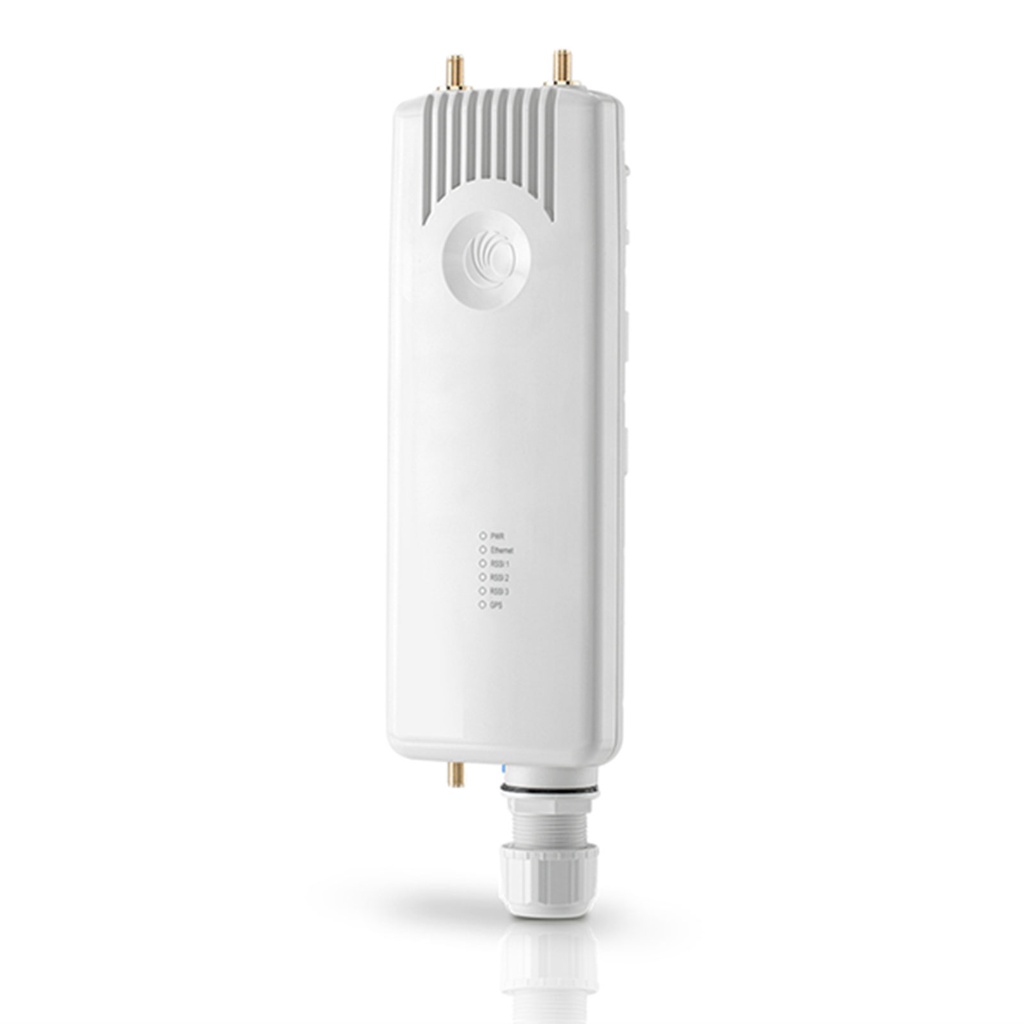

The ePMP product line from Cambium Networks has set the standard for high performance, scalability, and reliability in harsh interference environments, all at a compelling price. The ePMP 3000L is the third generation access point that carries on the interference tolerance mechanisms, emphasizing high-performance in low-density point to multipoint sectors. The ePMP 3000L is a 2X2 MIMO connectorized access point that can support a wide variety of deployments including 90/120 degree sectors, narrow-sector horns or even 360 degree omni coverage.
The ePMP 3000L system boasts high packet per second performance, peak throughput of 600Mbps and supports subscriber modules with up to 600Mbps of peak throughput.
Product Features
- MicroPOP Applications
- Unmatched Performance and Scalability
- Frequency Reuse
Product Specifications
- Supports a wide frequency range: 4910 to 5950MHz
- 2X2 MIMO support with peak throughput of 600Mbps
- 256QAM-5/6, 80MHz support
| Spectrum | |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | 4910 - 5970 MHz (exact frequencies as allowed by local regulations)) |
| Channel Width | 20 | 40 | 80 MHz |
| Performance | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = −89dBm to MCS 8 (256 QAM-3/4) = −66dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = −87dBm to MCS 9 (256 QAM-5/6) = −64dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = −84dBm to MCS 9 (256 QAM-5/6) = −59 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS0 (BPSK) to MCS 9 (256 QAM 5/6) |
| GPS Synchronization | Yes, via Internal GPS Connector for optional external GPS antenna (Model N000900L030A) |
| Physical | |
| Sector Antenna Connection | 2 x 50 ohm, RP (Reverse Polarity) SMA Also compatible with RF Elements Twistport™ Adaptor for ePMP |
| GPS Antenna Connection | 1 x 50 ohm, RP (Reverse Polarity) SMA; Optional external GPS Puck Antenna avaialble model N000900L030A |
| Surge Suppression | 1 Joule Integrated. C000000L065A - 30V Gigabit surge suppressor recommended for optimal surge protection |
| Environmental | IP67 and IP68 Compliant |
| Temperature | −22°F to +140°F (−30°C to +60°C) |
| Power Consumption | 12 Watts (Up to 15 Watts in extreme cold temperatures when heater is activated.) |
| Input Voltage | 30 Volts Nominal (14V to 30V Range) (note that 14V minimum must be maintained at radio connector under all conditions including long cable lengths) |
| Weight | 0.5kg (1.1lbs.) without bracket |
| Dimensions | 84 x 223 x 32mm (3.3 x 8.8 x 1.3 inches) without brackets |
| Security | |
| Encryption | 128-bit AES (CCMP mode) |
| Certifications | |
| FCCID | Z8H-89FT0047 |
| Industry Canada Cert | 109W-0048 |
| CE | EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz) |
