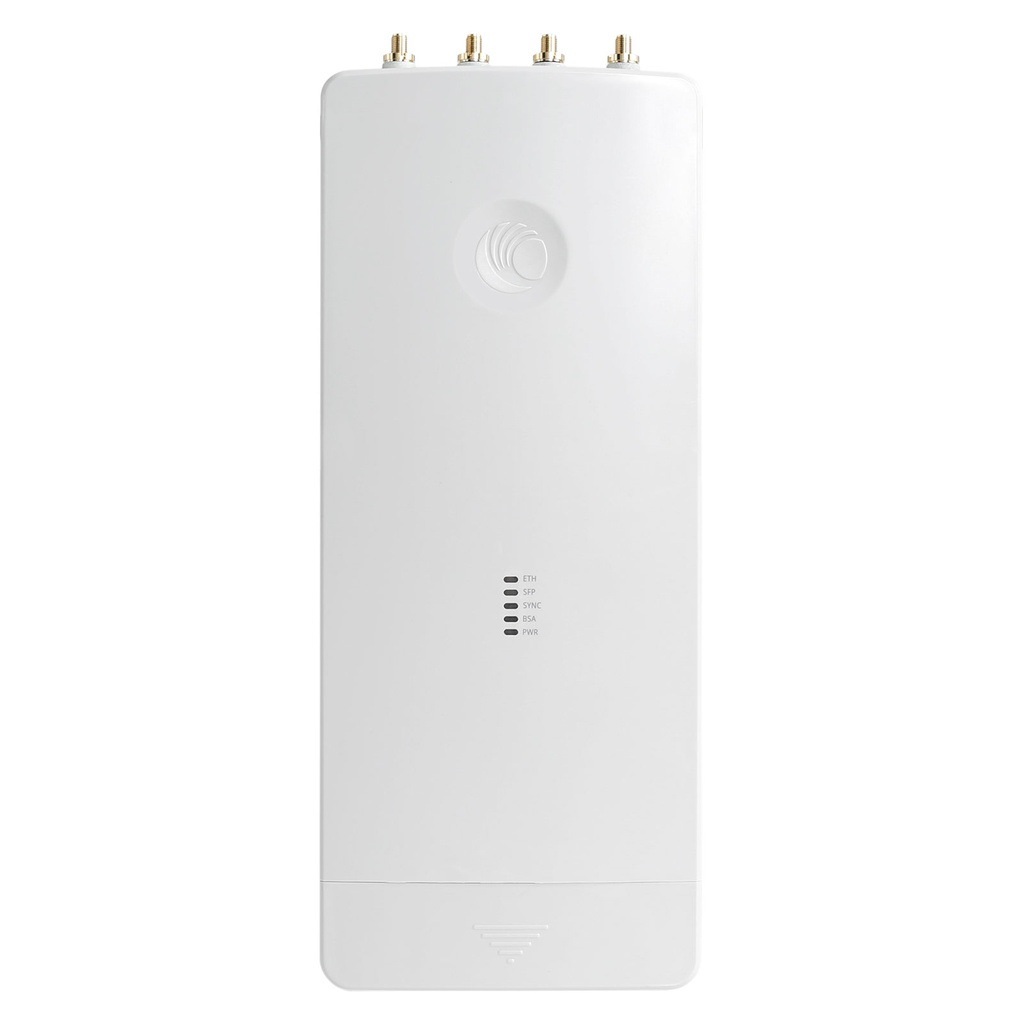

Cambium Networks ePMP 3000 5GHz Access Point Radio (IC)
100% original guarantee
Return within 30days
Free delivery on all orders
The ePMP 3000 Access Point series is the third generation based on 802.11ac Wave 2 techology. ePMP 3000 Access Points interoperate with Force 300 Subscriber Modules (SM) and supports backward compatiblity. ePMP 3000 Access Points can deliver up to 600Mbps aggregate to each Force 300 SM. A sophisticated scheduling and QoS engine combined with TDD synchronization allows the ePMP 3000 and 3000L to deliver consistently high-quality service plans to a large number of end users.
Product Features
- Features 4x4 MU-MIMO and dual overlapping sectors
- Can transmit to two SM’s at the same time
- Can deliver 1.2Gbps serving 120 of more subscribers
Product Specifications
- GPS synchronization via internal GPS or Cambium Sync
- Power Consumption: 25W Maximum
- Input Voltage: 44v to 59V
| Spectrum and Interface | |
| Channel Width MHz | 10 | 20 | 40 | 80 MHz |
| Proprietary Physical Layer | 4x4 MUMIMO/OFDM |
| Frequency Range | Wide Band Operation: 4910 - 5970 MHz |
| Ethernet Interfaced | 100/1000 BaseT, rate auto negotiated, 802.3at compliant and Aux SFP port |
| Performance | |
| Subscribers per Sector | Up to 120 |
| GPS Synchronization | Yes, via Internal GPS or Cambium Sync |
| Physical | |
| Surge Supression | 1 Joule Integrated |
| Environmental | IP55 |
| Weight | 0.7kg (1.5lbs) without bracket |
| Dimensions (H x W x D) | 22.2cm x 12.4cm x 4.5cm (8.75in x 4.9in x 1.75 in) without brackets |
| Power Consumption | 25W Maximum |
