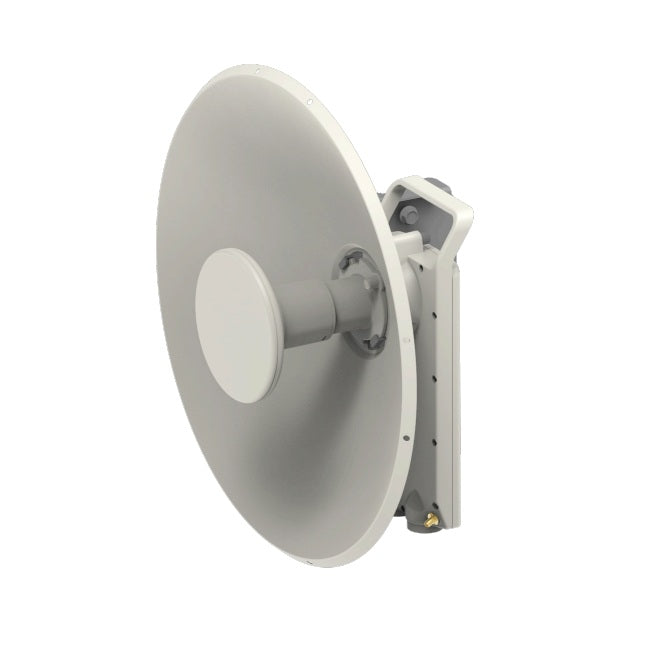

Cambium ePMP 5 GHz Force 425 SM 2-pack packaging priced per radio (IC) (Canada/US cord)
100% original guarantee
Return within 30days
Free delivery on all orders
The ePMP Force 425 from Cambium Networks is a point to point solution that delivers up to 1Gbps throughput at a breakthrough price point based on the latest 802.11ax standards.
With an integrated 25dBi dishhe Force 425 pushes capacity farther than ever (and even farther with the optional 28dBi range extender). The optional range extender is ordered separately and can be assembled and attached in the field to add additional link budget and fade margin for challenging links or to move to higher capacity where needed and higher modulations can be achieved.
Product Sepcifications
- Power Consumption: 28W
- Channel Spacing: Configurable in 5MHz increments
- Maximum Capacity: 1Gbps
| Spectrum | |
| Channel Spacing | Configurable in 5MHz increments |
| Frequency Range | Wide Band Operation 4910MHz - 5970MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| Channel Width | 20 | 40 | 80 |
| MAC (Media Access Control) Layer | Cambium Proprietary |
| Proprietary Physical Layer | 802.11ac Wave 2 (2x2 MIMO/OFDM) |
| Ethernet Interface | 100/1000 BaseT, Compatible with Cambium PoE and Standard PoE pinouts; 10 Gigabit SFP cage for optional SFP modules |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6) |
| Transmit Power Range | +3 to +28dBm (combined, to regional EIRP limit) (1dB interval) |
| Physical | |
| Surge Suppression | 1 Joule Integrated |
| Environmental | IP67 |
| Temperature | −30°C to 65°C (−22°F to 149°F) |
| Weight | 4.8kg (10.6lbs) |
| Wind Survival | 200km/hour (124mph) |
| Dimensions (Dia x Depth) | 470mm diameter x 285mm depth (18.5in diameter x 11.2in depth) |
| Pole Diameter Range | Center: 3.1cm to 7.6cm (1.25in to 3.0in) |
| Power Consumption | 28W |
