cAP ac

https://www.bi-distribution.com/web/image/product.template/10222/image_1920?unique=1cd0581

Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support and IPsec hardware encryption support

Login | Register to see price

Not Available For Sale


This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

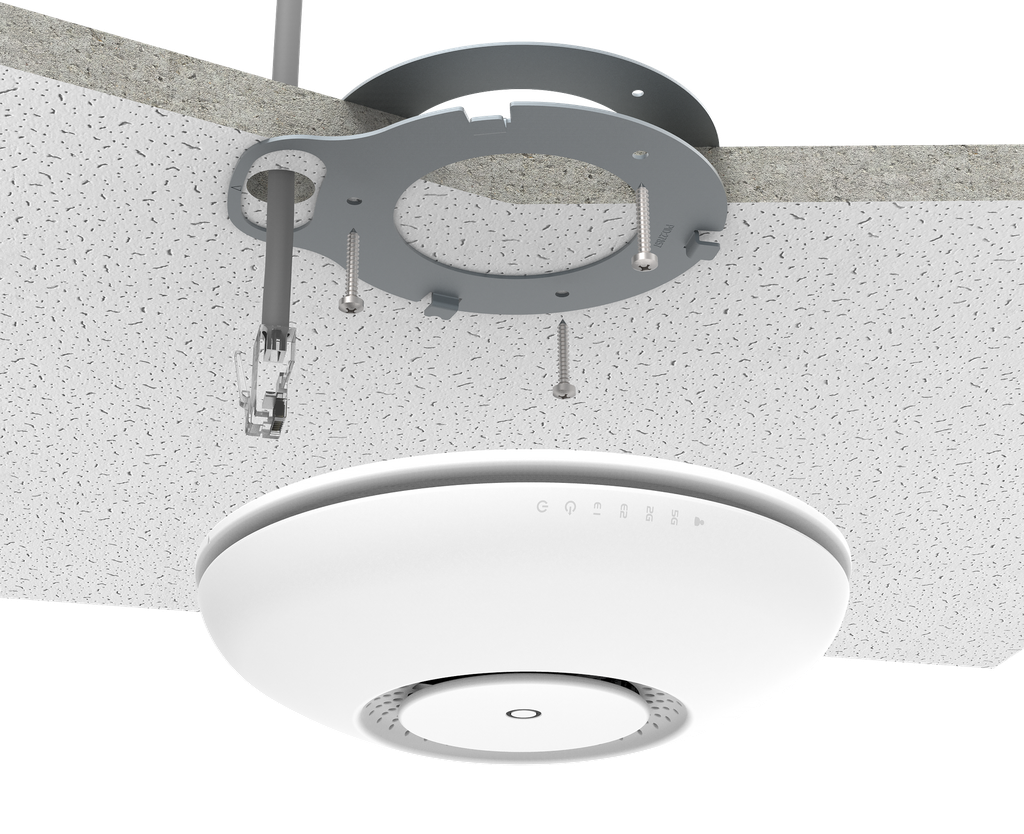

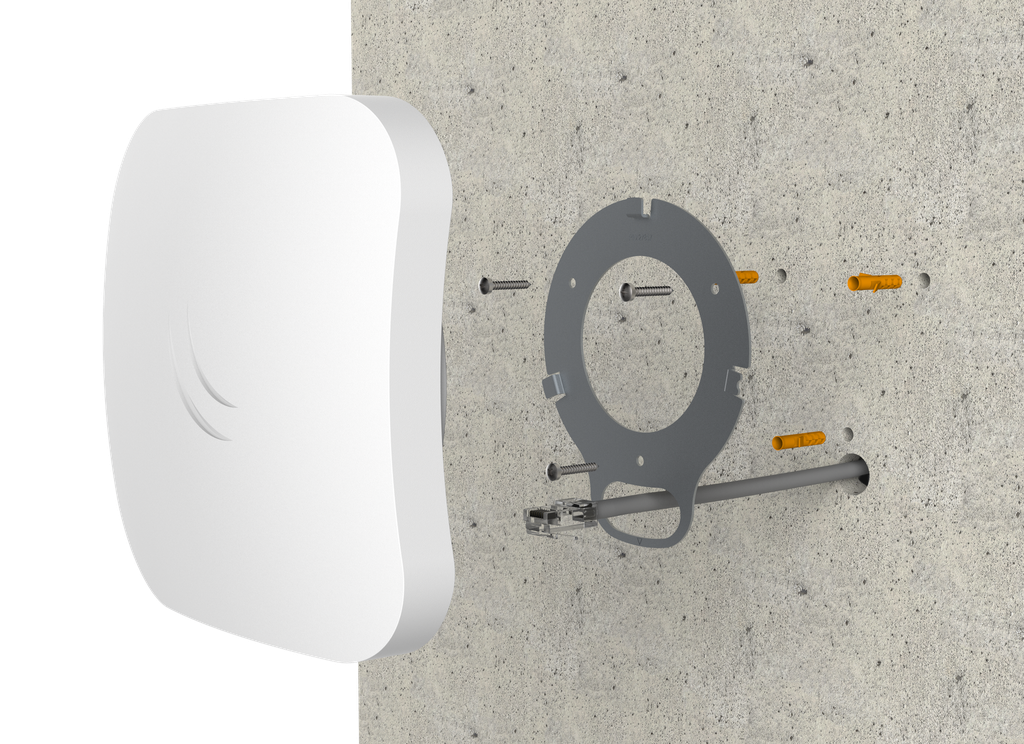

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.


Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.


- cAP ac-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.


The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


Specifications

Details
Product code RBcAPGi-5acD2nD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 488-896 (auto) MHz
Switch chip model IPQ-4018

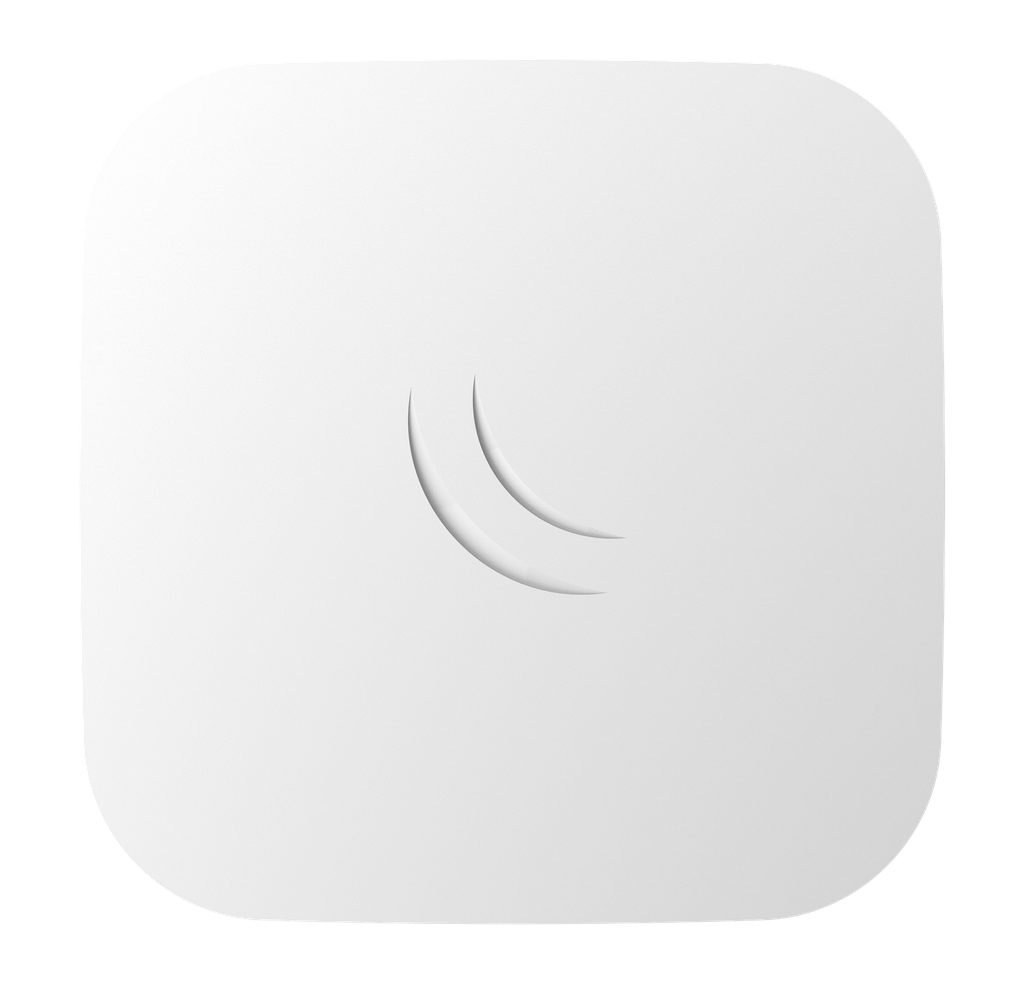

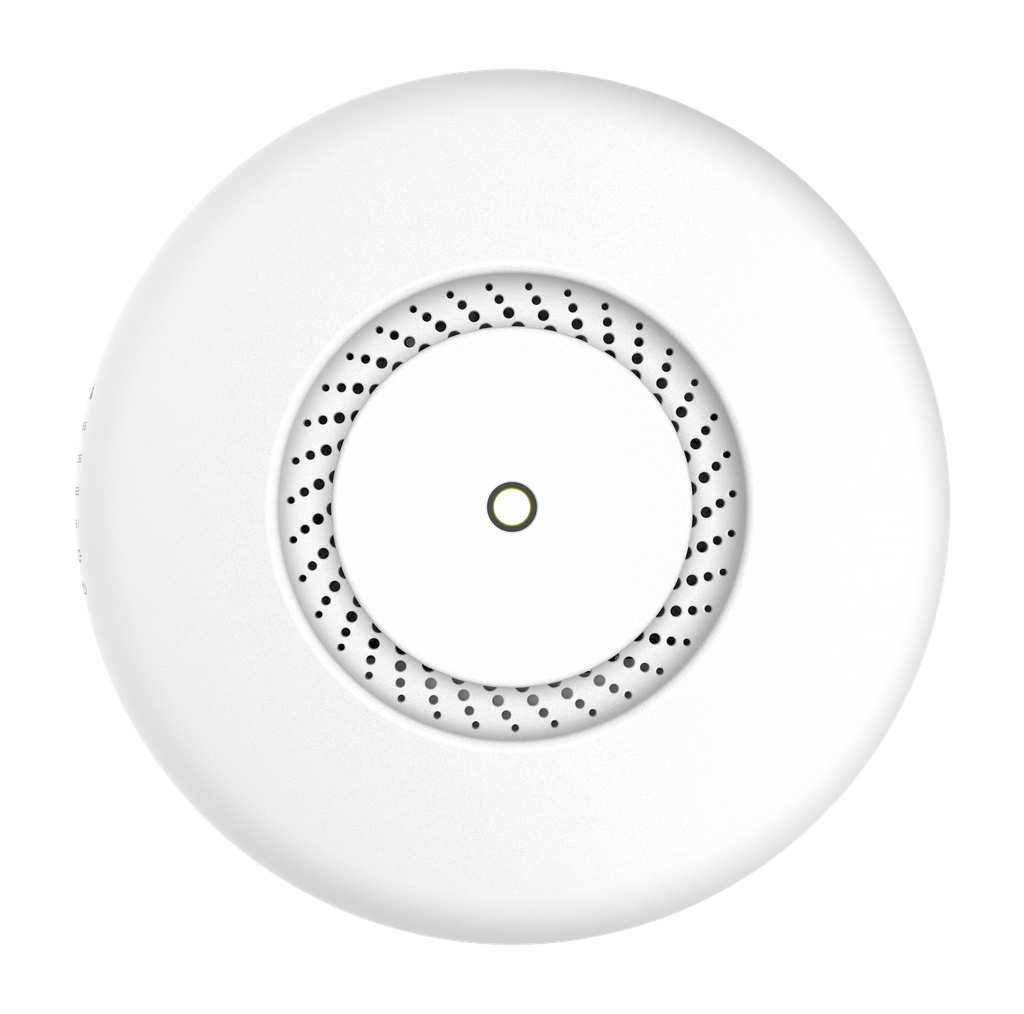

Dimensions Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 50°C
IPsec hardware acceleration Yes
Suggested price $85.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC1200

Ethernet

Details
10/100/1000 Ethernet ports 2

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 24 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 17-57 V

PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 500 mA
Max out per port output (input 30-57 V) 400 mA
Max total out (A) 500 mA

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 20

Other

Details
Mode button Yes

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s26-100
11MBit/s26-94
6MBit/s26-96
54MBit/s23-78
MCS026-96
MCS722-73
5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s26-96
54MBit/s21-80
MCS026-96
MCS720-75
MCS918-70

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
Block DiagramOpen
Mounting guideOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)
FCC Grant of Certification (2.4GHz)Open
FCC Grant of Certification (5GHz)Open

High resolution images

Ethernet test results

RBcAPGi-5acD2nDIPQ-4018 1G all port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)162.51973.4469.91924.71484.8760.2
Bridging25 bridge filter rules162.11968.5352.91445.5359.2183.9
Routingnone (fast path)162.51973.4469.91924.71488761.9
Routing25 simple queues162.51973.4469.91924.7506.3259.2
Routing25 ip filter rules162.21969.8240.8986.3242.9124.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RBcAPGi-5acD2nDIPQ-4018 IPsec throughput
ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
