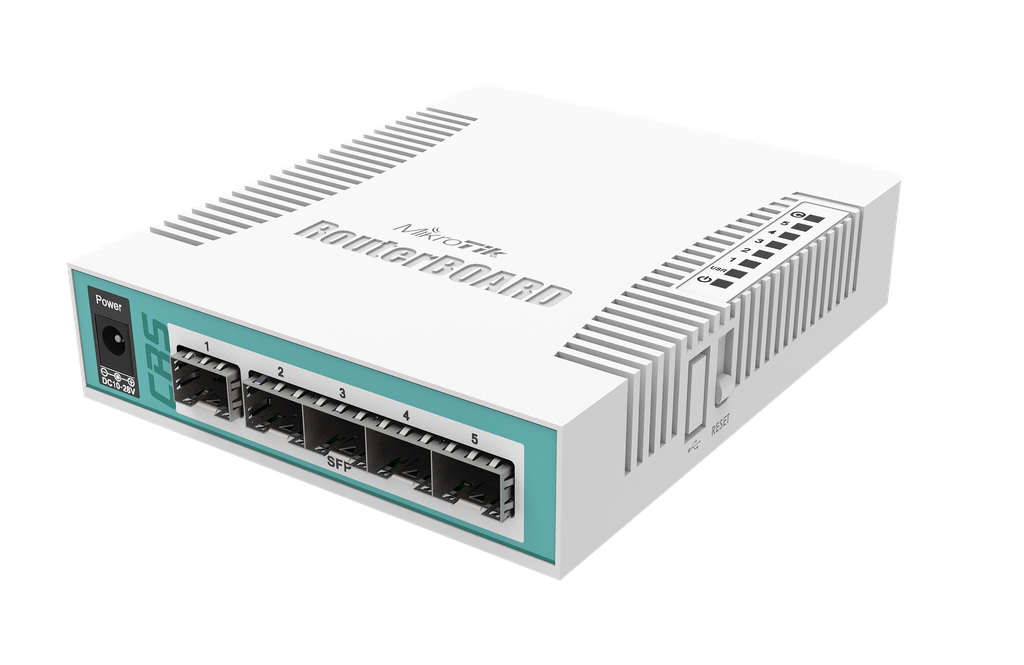

CRS106-1C-5S

https://www.bi-distribution.com/web/image/product.template/10174/image_1920?unique=03b0e28

Smart Switch, 5x SFP cages, 1x Combo port (SFP or Gigabit Ethernet), 400MHz CPU, 128MB RAM, desktop case, RouterOS L5

Login | Register to see price

Not Available For Sale

This combination does not exist.

Contact Us
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders

The Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.


At $59 this product provides a market-leading solution for connecting up to six SFP devices.


The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


Specifications

Details
Product code CRS106-1C-5S
Architecture MIPSBE
CPU QCA8511
CPU core count 1
CPU nominal frequency 400 MHz
Switch chip model QCA8511
Dimensions 114 x 137 x 29mm
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -20°C to 70°C
Suggested price $59.00

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 11-30 V
Max power consumption 11 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 11-30 V

Ethernet

Details
Ethernet Combo ports 1

Fiber

Details
SFP ports 5

Peripherals

Details
Serial console port RJ45

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
Block DiagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

High resolution images

Switching results

CRS106-1C-5S
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 487.6 5,922.0 1,409.8 5,774.4 8,928.6 4,571.4
Switching Non blocking Layer 2 capacity 487.6 11,844.0 1,409.8 11,548.9 8,928.6 9,142.9
Switching Non blocking Layer 1 throughput 487.6 6,000.0 1,409.8 6,000.0 8,928.6 6,000.0
Switching Non blocking Layer 1 capacity 487.6 12,000.0 1,409.8 12,000.0 8,928.6 12,000.0

Ethernet test results

CRS106-1C-5SQCA8511 1G all port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone48.0582.973.5301.178.039.9
Bridging25 bridge filter rules26.1317.028.6117.129.615.2
Routingnone46.5564.765.7269.171.136.4
Routing25 simple queues14.5176.116.165.916.88.6
Routing25 ip filter rules7.894.78.032.88.34.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
