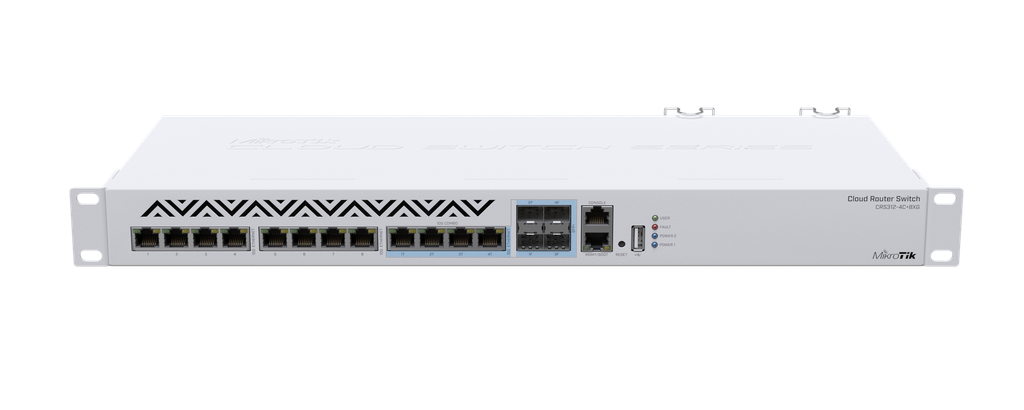

Switch of the future: the first MikroTik product with 10G RJ45 Ethernet ports and SFP+

Login | Register to see price

Not Available For Sale


This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Remove the bottleneck from your network setup – it is time to upgrade that 1 Gigabit switch to something truly powerful and enjoy real speed. Introducing CRS312-4C+8XG-RM – our first product with 10G RJ45 Ethernet ports. Moreover, it also has 4 x 10G combo ports: use them for 10G RJ45 Ethernet or 10G SFP+, when you need an additional fiber connection. Combo ports can be used alongside the 8 regular 10G RJ45 Ethernet ports at all times. These ports can also be software selected, so you can use RouterOS scripting, to decide which combo ports will be active.


This device is a practical solution for those who work with huge data files and need fast, capable connection 24/7: multimedia production, scientific research, game development, big data analysis and so on. CRS312-4C+8XG-RM has a dual power supply for redundancy – no unexpected downtime when the deadlines are looming. It has a full size USB, a console port for configuration and a 1U rackmount case – fits all the standard racks.


You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.


This switch has a great total non-blocking throughput of 120 Gbps, switching capacity of 240 Gbps and forwarding rate of 178 Mpps. CRS312-4C+8XG-RM – built for professionals, great for everyone!


The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
DimensionsOpen
Block DiagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
SwOS software manualOpen
Declaration of conformityOpen (CE)

High resolution images

Specifications

Details
Product code CRS312-4C+8XG-RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model 98DX8212
Dimensions 443 x 183 x 44 mm
RouterOS license 5
Operating System RouterOS v7 / SwitchOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 70°C
Suggested price $699.00

Powering

Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 60 W
Cooling type 4 fans

Ethernet

Details
10/100 Ethernet ports 1
Number of Combo 10G Ethernet/ SFP+ ports 4
Number of 1G/2.5G/5G/10G Ethernet ports 8

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS

Included parts

Switching results

CRS312-4C+8XG-RMCRS312-4C-8XG all port switching results
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
SwitchingNon blocking Layer 2 throughput 9752,8118438.228195,5115488.8178571,391428.5
SwitchingNon blocking Layer 2 capacity 9752,8236876.528195,5230977.5178571,3182857.0
SwitchingNon blocking Layer 1 throughput 9752,8120100.028195,5120100.0178571,3120100.0
SwitchingNon blocking Layer 1 capacity 9752,8240200.028195,5240200.0178571,3240200.0

Ethernet test results

CRS312-4C+8XG-RMQCA9531 all port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)37,4454.282,8339.1162,583.2
Bridging25 bridge filter rules33,8410.547,8195.875,638.7
Routingnone (fast path)37,2451.873,3300.2144,974.2
Routing25 simple queues36,4442.052,4214.654,427.9
Routing25 ip filter rules33,8410.541,4169.641,721.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
