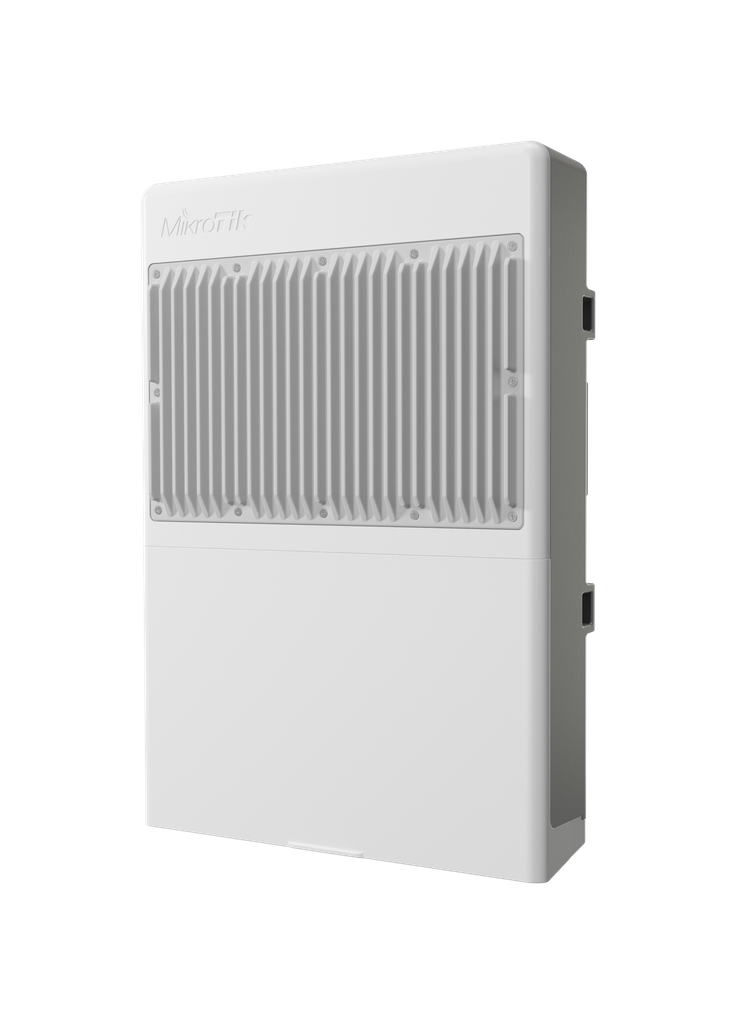

netPower 16P

https://www.bi-distribution.com/web/image/product.template/9417/image_1920?unique=d895ab2

An outdoor 18 port switch with 16 Gigabit PoE-out ports and 2 SFP+. Power all your access points anywhere!

Login | Register to see price

Not Available For Sale


This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.


Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.


netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.


Device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).


* Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, MTP250-53V47-OD, MTP250-26V94-OD, 48POW and 48V2A96W


The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


Specifications

Details
Product code CRS318-16P-2S+OUT
Architecture ARM 32bit
CPU 98DX226S
CPU core count 1
CPU nominal frequency 800 MHz
Switch chip model 98DX226S
Dimensions 303 x 212 x 78 mm
RouterOS license 5
Operating System RouterOS / SwitchOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $279.00

Powering

Details
Number of DC inputs 2 (DC jack)
DC jack input Voltage 18-30 V / 48-57 V
Max power consumption 316 W
Max power consumption without attachments 16 W
Cooling type Passive

PoE-out

Details
PoE-out ports Ether1-Ether16
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1.1 A
Max out per port output (input 30-57 V) 0.6 A
Max total out (A) 2.8A (18V-30V) & 1.4A (48V-57V) x2

Ethernet

Details
10/100/1000 Ethernet ports 16
Number of 1G Ethernet ports with PoE-out 16

Fiber

Details
SFP+ ports 2

Other

Details
CPU temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP54

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
RouterBoot firmware Download
Block DiagramOpen
Mounting templateOpen
SFP compatibility listOpen
RouterOS software manualOpen
SwOS software manualOpen
Declaration of conformityOpen (CE)

High resolution images

Switching results

CRS318-16P-2S+OUT
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 2,925.9 35,531.9 8,458.6 34,646.6 53,571.4 27,428.6
Switching Non blocking Layer 2 capacity 2,925.9 71,063.7 8,458.6 69,293.2 53,571.4 54,857.1
Switching Non blocking Layer 1 throughput 2,925.9 36,000.0 8,458.6 36,000.0 53,571.4 36,000.0
Switching Non blocking Layer 1 capacity 2,925.9 72,000.0 8,458.6 72,000.0 53,571.4 72,000.0

Ethernet test results

CRS318-16P-2S+OUT98DX226 all port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)104,11264.2119,1487.8141,172.2
Bridging25 bridge filter rules59,7725.059,7244.570,436.0
Routingnone (fast path)104,11264.2129,7531.3143,573.5
Routing25 simple queues56,7688.657,9237.265,233.4
Routing25 ip filter rules44,1535.645,6186.848,424.8
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
