RB4011iGS+RM

https://www.bi-distribution.com/web/image/product.template/9866/image_1920?unique=76e5dfd

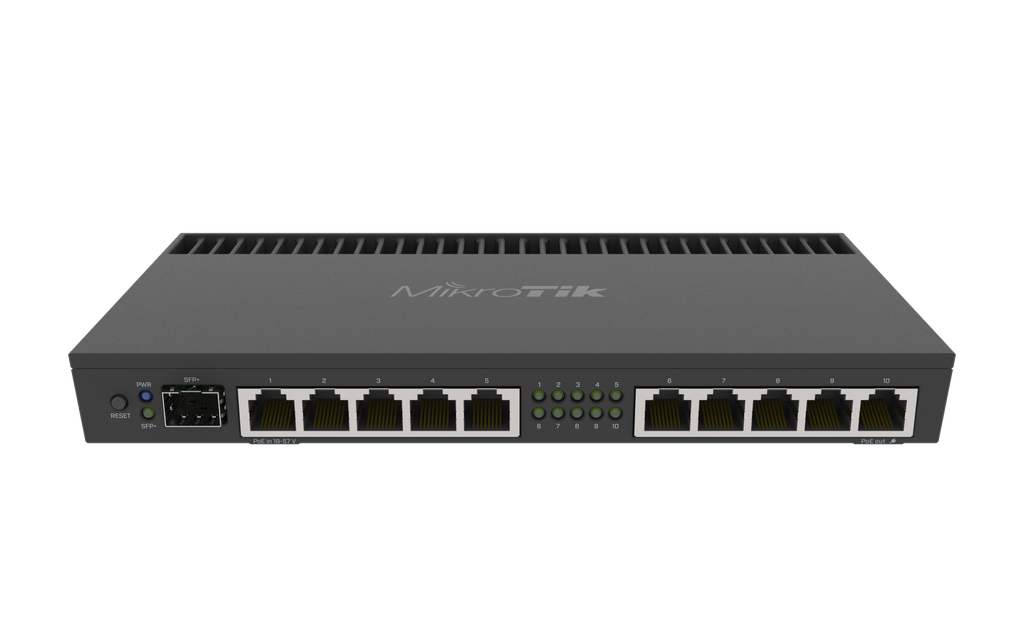

Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage and desktop case with rack ears

Login | Register to see price

Not Available For Sale

This combination does not exist.

Contact Us
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!


The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

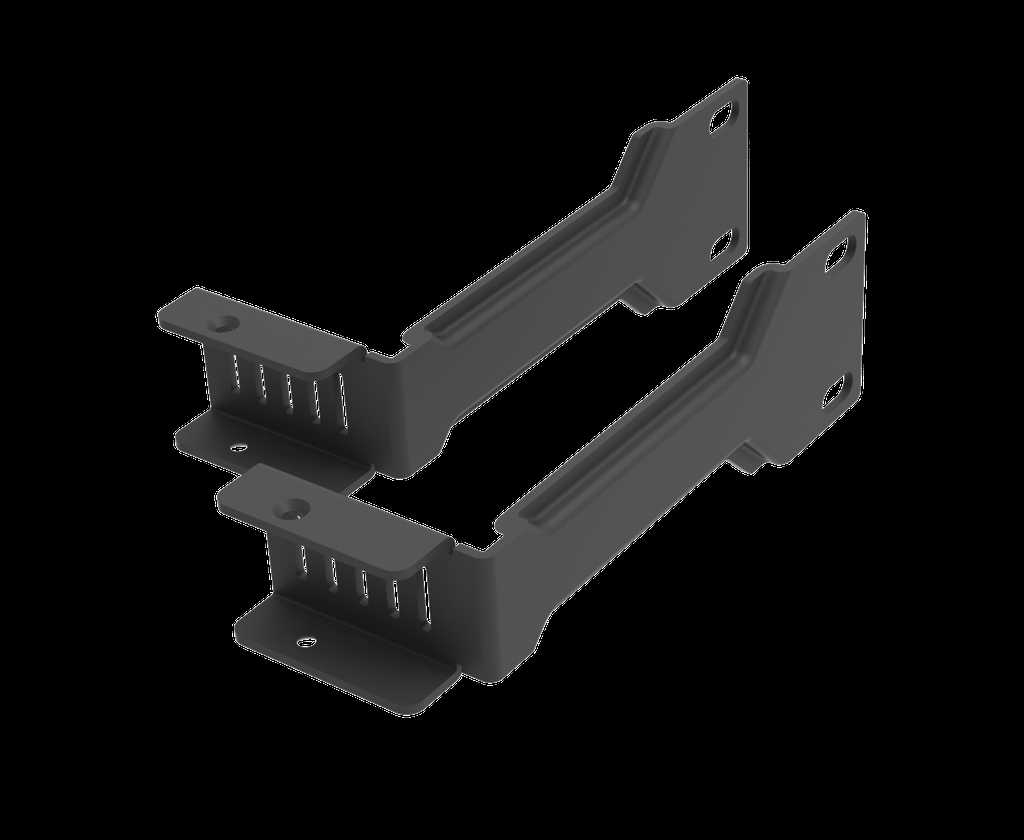

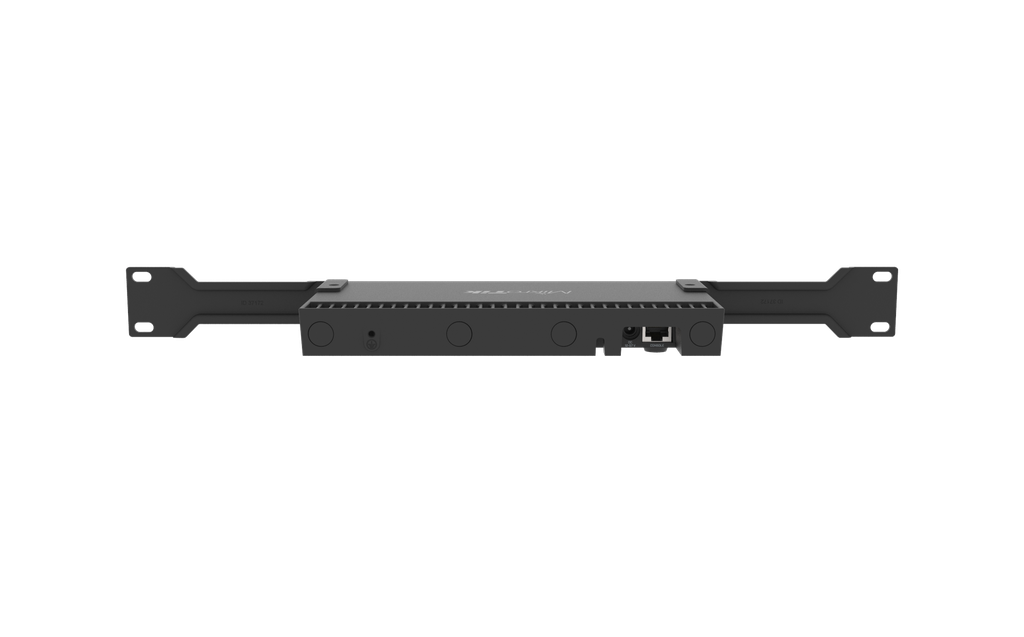

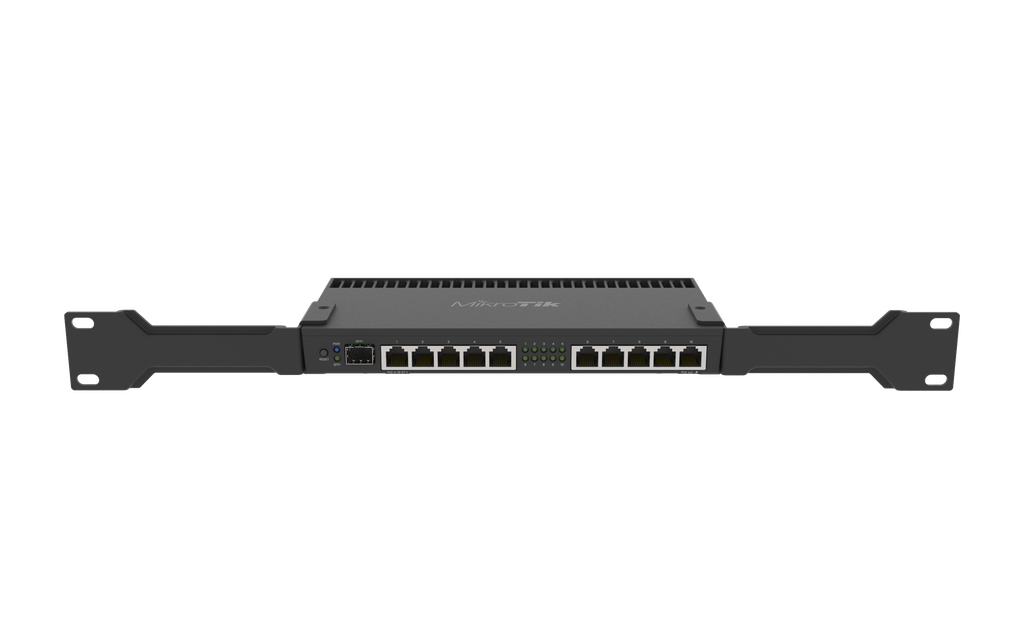

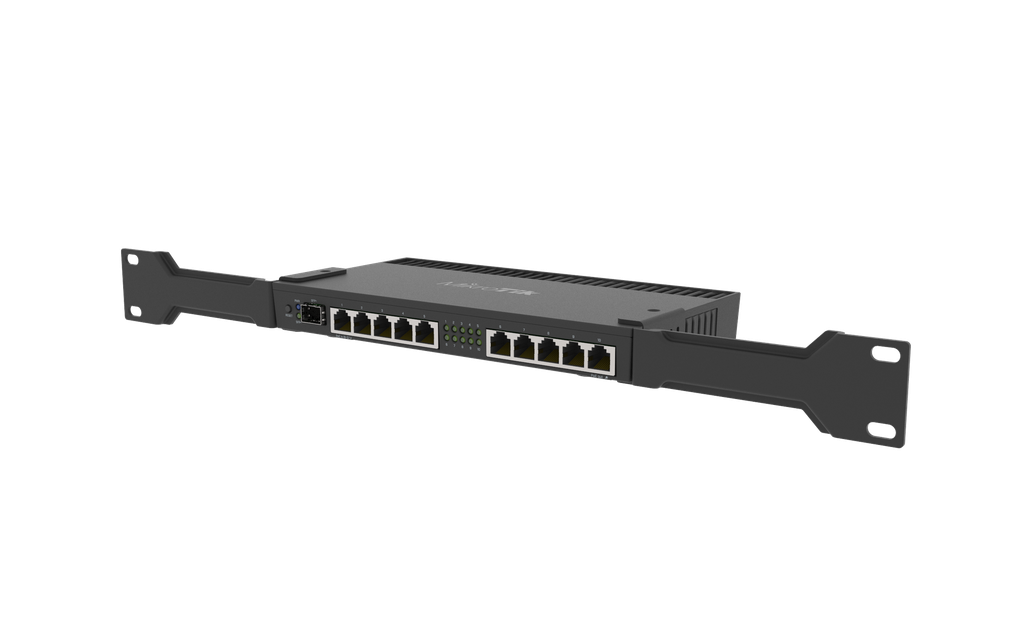

RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.


The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


Specifications

Details
Product code RB4011iGS+RM
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency auto (533 - 1900) MHz
Switch chip model RTL8367SB
Dimensions 228 x 120 x 30 mm
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $219.00

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 33 W
Max power consumption without attachments 18 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-57 V

PoE-out

Details
PoE-out ports Ether10
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 420 mA
Max total out (A) 600 mA

Ethernet

Details
10/100/1000 Ethernet ports 10

Fiber

Details
SFP+ ports 1

Peripherals

Details
Serial console port RJ45

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
Mounting dimensionsOpen
Block diagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

RB4011iGS+RMAL21400 1G/S+ all port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)806,49,792.92312,99,473.65509,72,821.0
Bridging25 bridge filter rules806,49,792.91037,44,249.21153,2590.4
Routingnone (fast path)806,49,792.91923,37,877.85092,32,607.3
Routing25 simple queues806,49,792.91046,64,286.9960,3491.7
Routing25 ip filter rules593,77,209.9625,22,560.8564,6289.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB4011iGS+RMAL21400 IPsec throughput
ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA192.11031.593.1381.392.347.3
256 tunnelsAES-128-CBC + SHA1115.51293.6117.4480.9132.367.7
256 tunnelsAES-128-CBC + SHA256115.51293.6117.4480.9132.367.7
256 tunnelsAES-256-CBC + SHA1114.61283.5111.4456.3126.364.7
256 tunnelsAES-256-CBC + SHA256114.61283.5111.4456.3126.364.7
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
