2.4GHz/5GHz AP/Backbone/CPE, N-male connector, includes 2.4GHz/5GHz 6dBi Omni Antenna

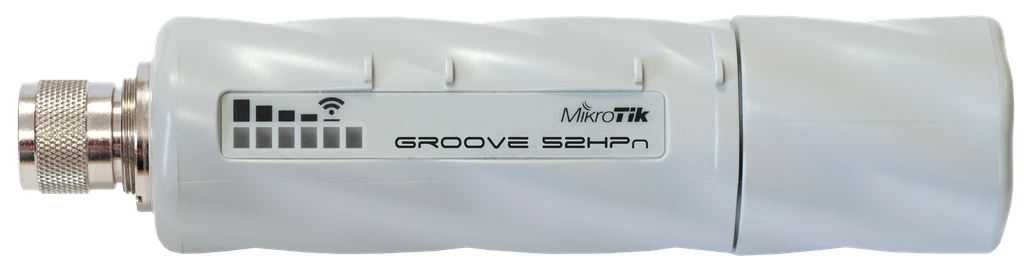

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power! GrooveA has also supports AP mode.
With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

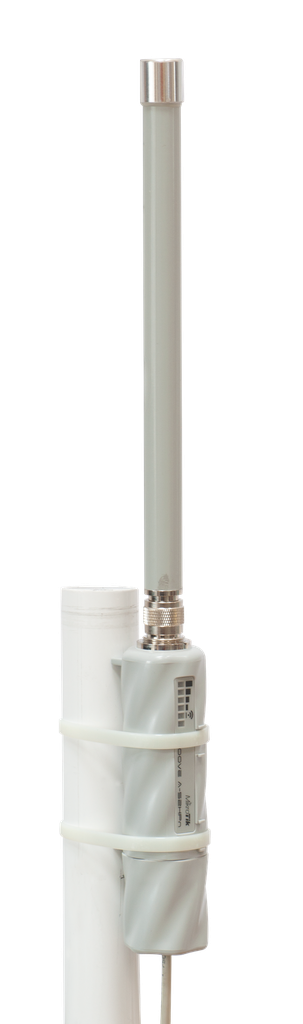

NEW- now comes packaged with a Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz)!
Box contains: Groove unit, mounting loops, PoE injector, power adapter, Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz).
We have two versions available.
- RBGrooveA-52HPn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RBGrooveA-52HPn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
| Details | |
|---|---|
| Product code | RBGrooveA-52HPn |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 177x44x44mm, 193g |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $79.00 |
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 9-30 V |
| Details | |
|---|---|
| Wireless 2.4 GHz/5 GHz Max data rate | 150 Mbit/s |
| Wireless 2.4 GHz/5 GHz number of chains | 1 |
| Wireless 2.4 GHz/5 GHz standards | 802.11b/g/n, 802.11a/n |
| Antenna gain dBi for 2.4 GHz/5 GHz | 6 |
| Wireless 2.4 GHz/5 GHz chip model | AR9342 |
| Wireless 2.4 GHz/5 GHz generation | Wi-Fi 4 |
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 27 | -97 |
| 11MBit/s | 27 | -91 |
| 6MBit/s | 27 | -93 |
| 54MBit/s | 24 | -75 |
| MCS0 | 27 | -93 |
| MCS7 | 23 | -70 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 27 | -93 |
| 54MBit/s | 23 | -75 |
| MCS0 | 26 | -93 |
| MCS7 | 22 | -70 |
| RBGrooveA-52HPnr2 | AR9342 100M 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 60.5 | 31.0 |
