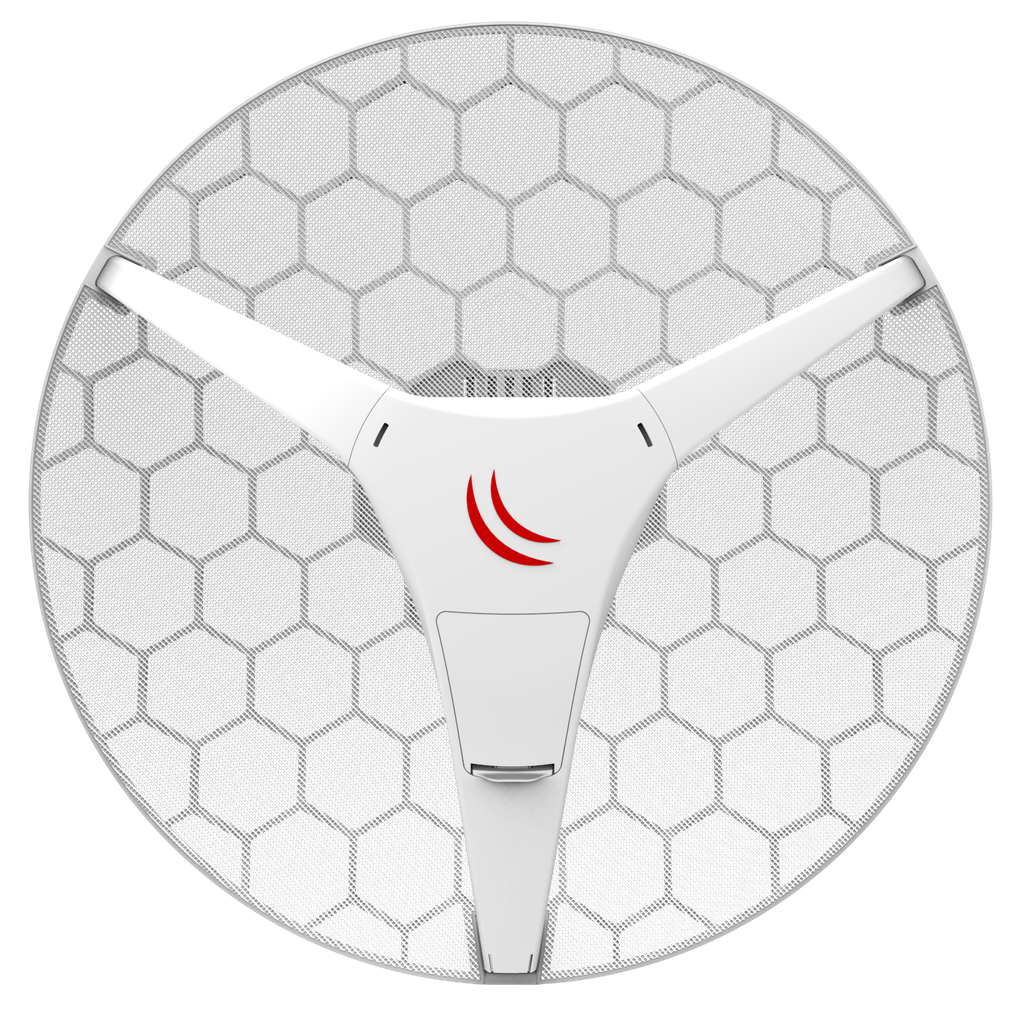

LHG 60G – a high-speed 60 GHz CPE point-to-multipoint unit, perfect solution for crowded wireless spectrum


No need to share the frequency with your neighbors and lose valuable time – LHG 60G offers a simple and effective 60 GHz solution for wireless connection where the 2 GHz and 5GHz wireless space is crowded and unreliable. Connect up to eight of these units to a 60 GHz access point, such as our wAP60G AP or wAP 60Gx3 AP, and enjoy the smooth connection with data rate up to 2 Gbps.

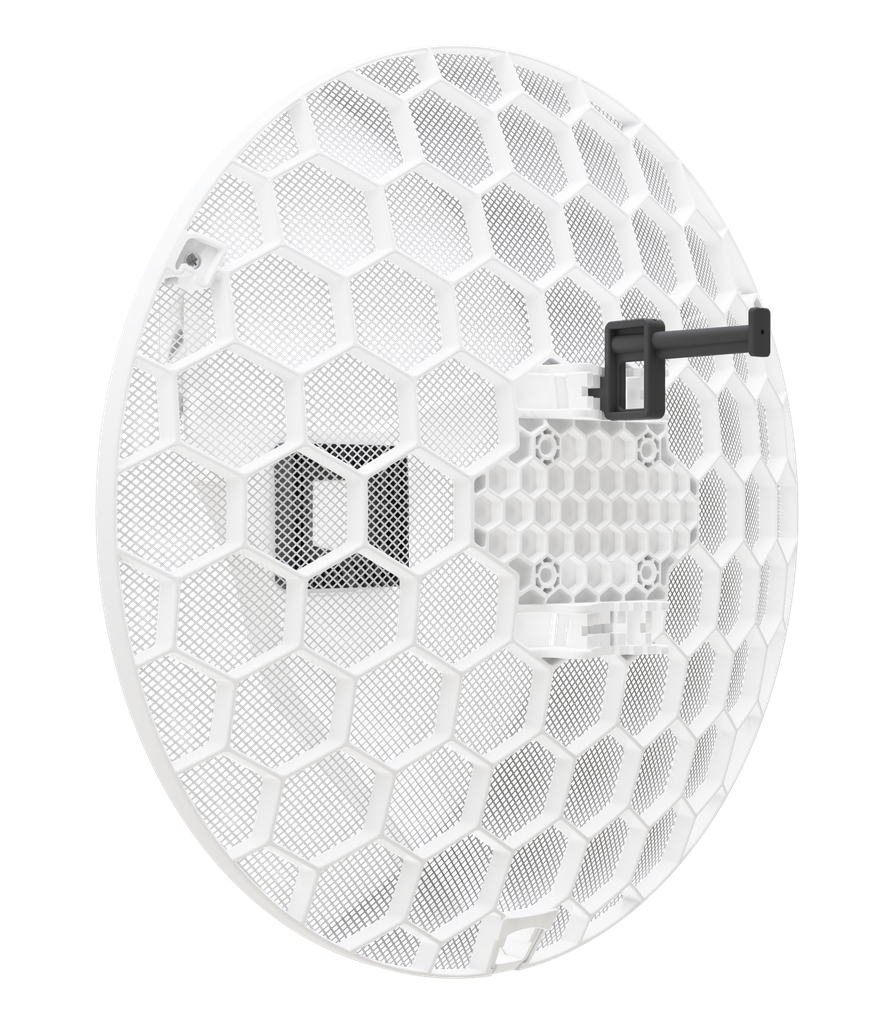

The effective point-to-point distance between two LHG 60G units is up to 1500 meters, point-to-multipoint – up to 800 meters. The grid design ensures protection against wind, it can withstand temperatures from -40 C‎° to +70 C‎°. The antenna element is built into the wireless unit – no loss on cables.

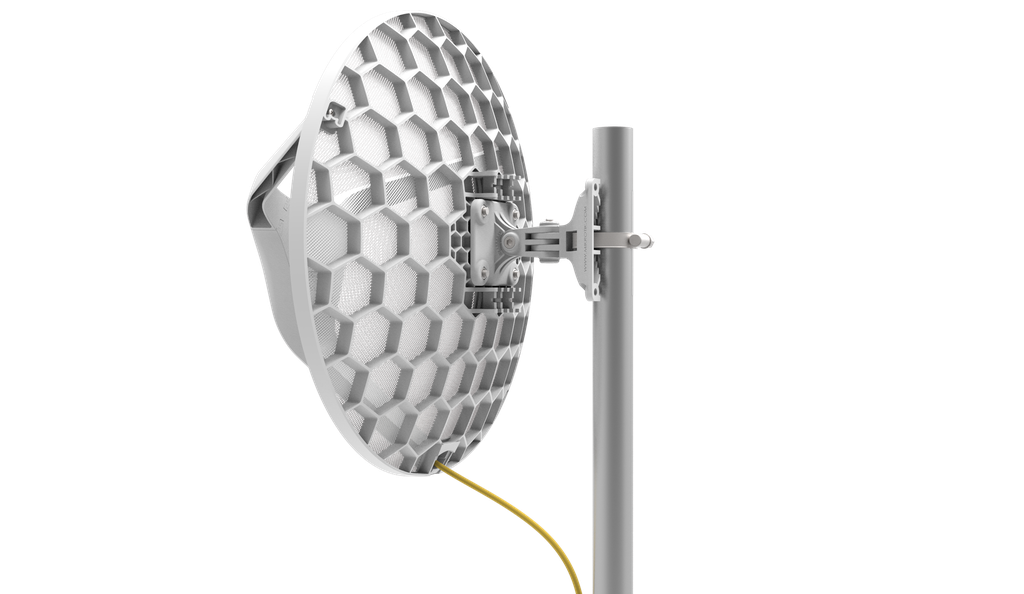

LHG 60G is shipped with an Aim tool for easy precision alignment and strong metal LHG mount. Order it today and forget about wireless interference!


The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


Specifications

Details
Product code RBLHGG-60ad
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 448-896 (auto) MHz
RouterOS license 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $149.00

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 5 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

Ethernet

Details
10/100/1000 Ethernet ports 1

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP55

Included parts

BrochureOpen
Quick GuideOpen
Selection guide for PtMP linksOpen
Selection guide for PtP linksOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

RBLHGG-60adr2IPQ-4018 1G one port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)82,2998.2243,9999.01484,8760.2
Bridging25 bridge filter rules82,2998.2243,9999.0359,2183.9
Routingnone (fast path)82,2998.2243,9999.01488761.9
Routing25 simple queues82,2998.2243,9999.0506,3259.2
Routing25 ip filter rules82,2998.2240,8986.3242,9124.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RBLHGG-60adr2IPQ-4018 IPsec throughput
ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
