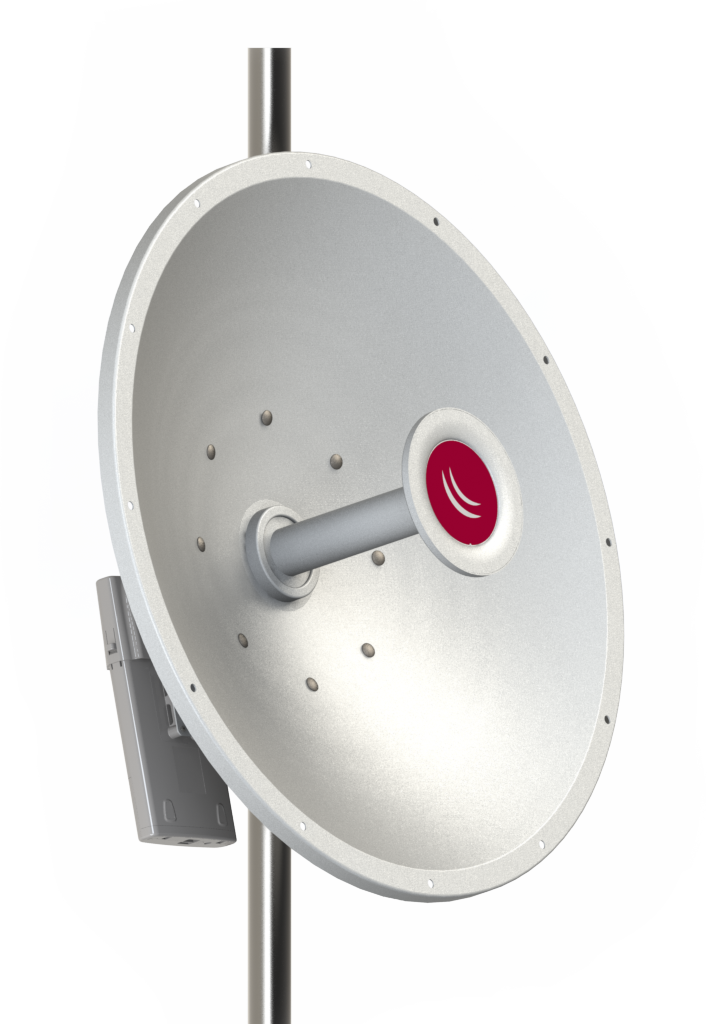

mANT30 PA
Parabolic dish antenna for 5GHz, 30dBi gain. This model includes precision alignment mount
100% original guarantee
Return within 30days
Free delivery on all orders
mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
Note: Basebox wireless device pictured for illustrative purposes. It is not included
Product specifications
| Details | |
|---|---|
| Product code | MTAD-5G-30D3-PA |
| Beamwidth | +/-2.5 deg |
| Certification | CE, ROHS |
| Connector | 2x RP-SMA Female (outside thread) |
| Cross Polarization | >40 dB |
| Diameter x Depth | 70 x 45cm (27.5 x 17.8in) |
| Elevation adjustment range | +/- 15 deg |
| Frequency Range | 4.7-5.875 GHz |
| Front-to-Back Ratio | >30 dB |
| Impedance | 50 ohms |
| Outdoor Rating | ETSI EN 300 019-2-4 |
| Packaged size | 73x73x20cm (29x29x8in) |
| Packaged weight | 8.4 kg (18,5) |
| Polarization | Vertical and Horizontal |
| Pole Mount Diameter Range | 3 to 10cm (1.2 to 3.9in) |
| Port to Port Isolation | >40dB min |
| Power Rating | 100W |
| Reflector | Aluminum |
| Standards | EN 302 326 DN1, DN2, DN3, DN5 |
| Tested ambient temperature | -50°C to 80°C(-49°F to 158°F) |
| VSWR | ≤ 1.4 typ, ≤ 1.8 max |
| Weight | 5.7kg (12.6 lbs) |
| Wind Load (125 mph) | 181.4kg (400 lbs), 50 kg at 40 m/s, 28 kg at 30 m/s |
| Wind Survivability | 201kph (125mph) |
| Suggested price | $219 |
