2.4GHz 120 degree 12dBi dual polarization sector Integrated antenna with 600Mhz CPU, 64MB RAM, Gigabit Ethernet, PSU and PoE

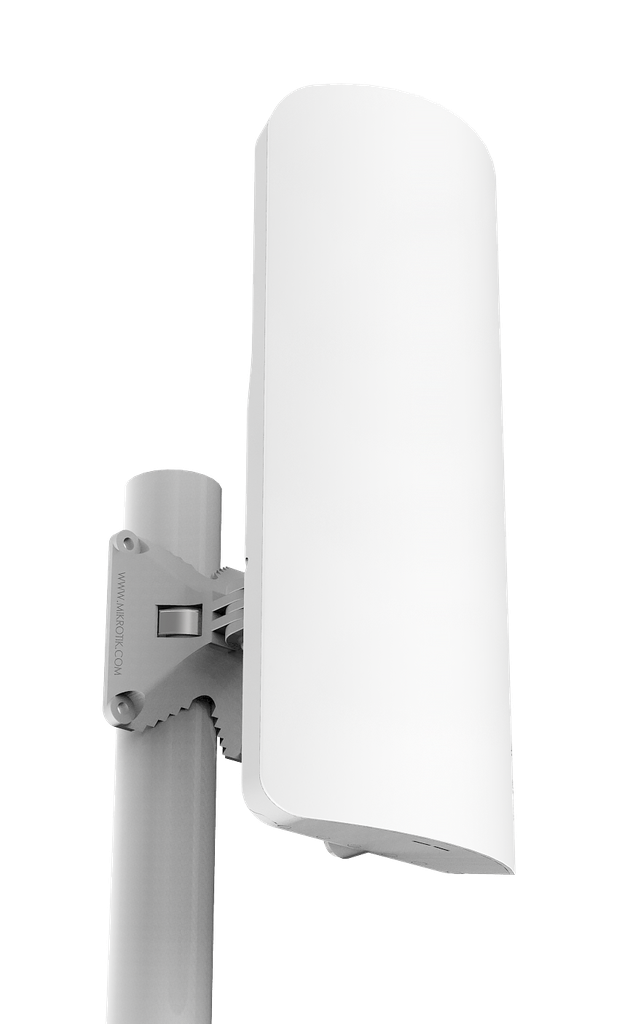

mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz.
The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
| Details | |
|---|---|
| Product code | RB911G-2HPnD-12S |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 140 x 348 x 82 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $99.00 |
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 11 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 12 |
| Wireless 2.4 GHz chip model | AR9342 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 30 | -100 |
| 11MBit/s | 30 | -94 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -96 |
| MCS7 | 24 | -73 |
| RB911G-2HPnD-12Sr2 | AR9342 1G 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.0 | 983.7 | 232.0 | 950.3 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 81.0 | 983.7 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 81.0 | 983.7 | 210.0 | 860.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 81.0 | 983.7 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
