mAP lite

https://www.bi-distribution.com/web/image/product.template/10215/image_1920?unique=03b0e28

Tiny size 2.4GHz Dual Chain access point with a 650MHz CPU, 64MB RAM and one Ethernet

Login | Register to see price

Not Available For Sale


This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

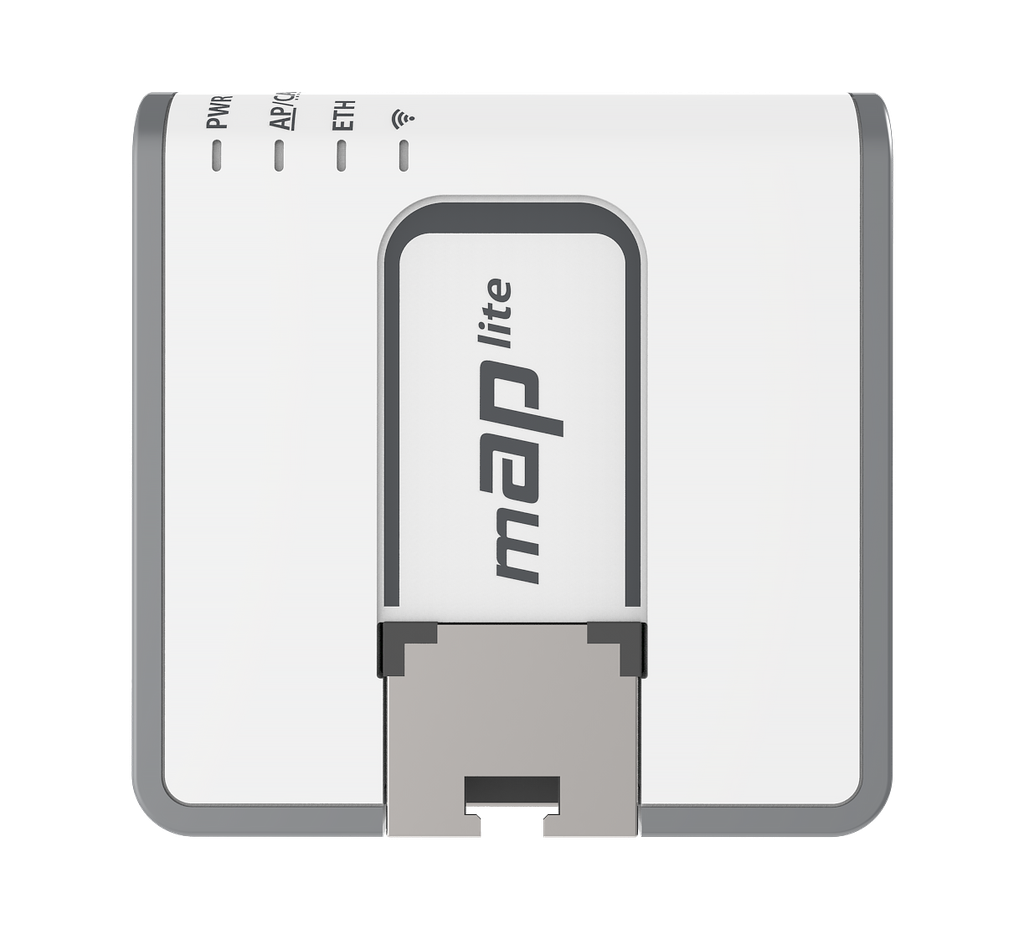

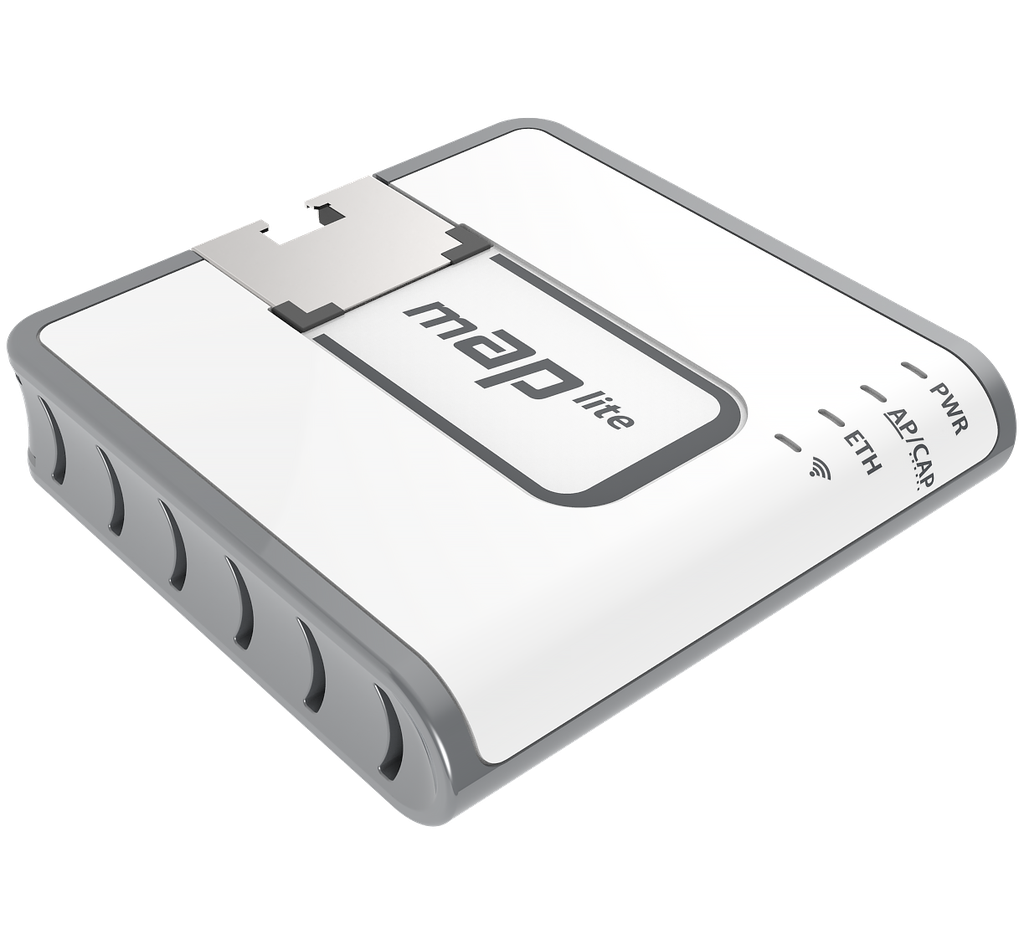

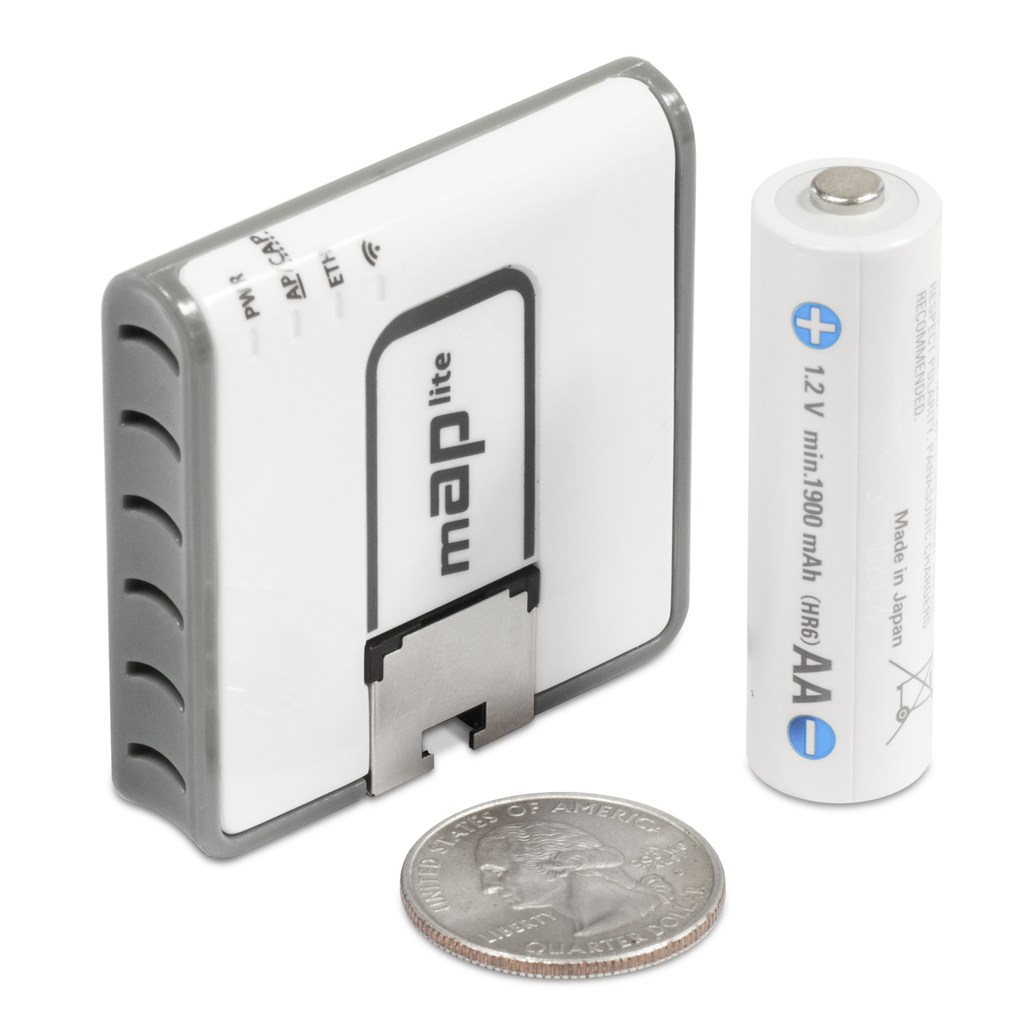

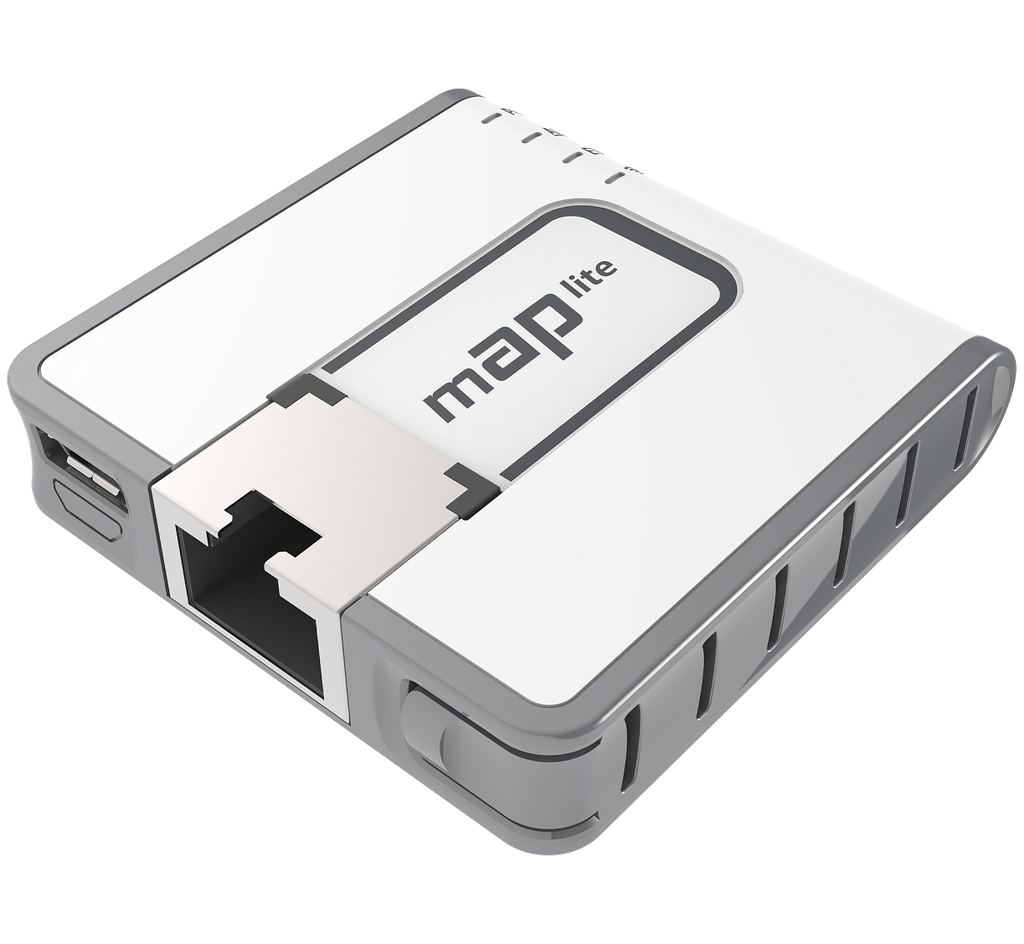

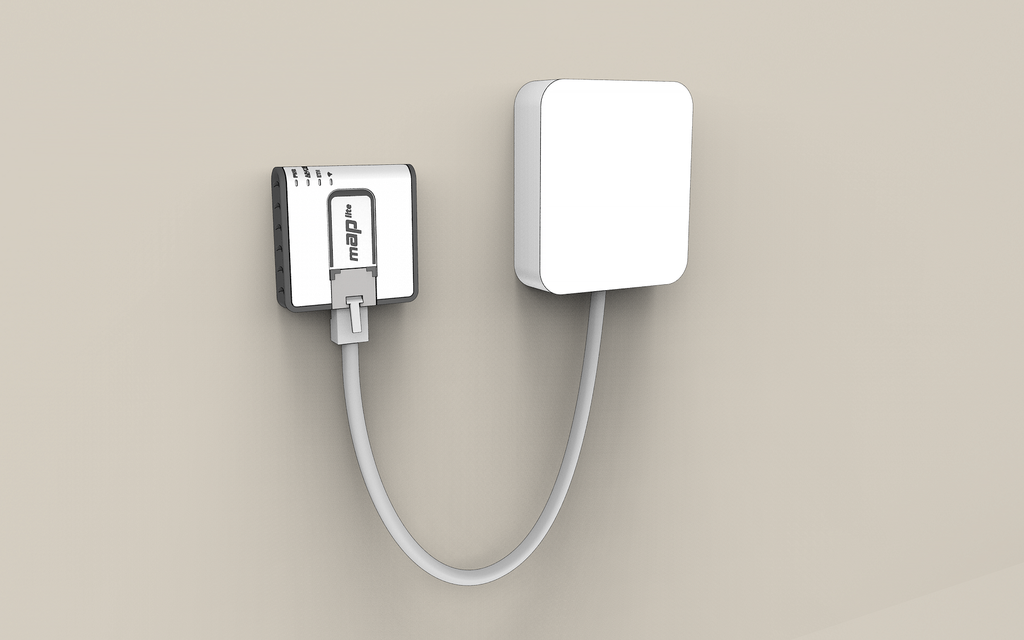

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

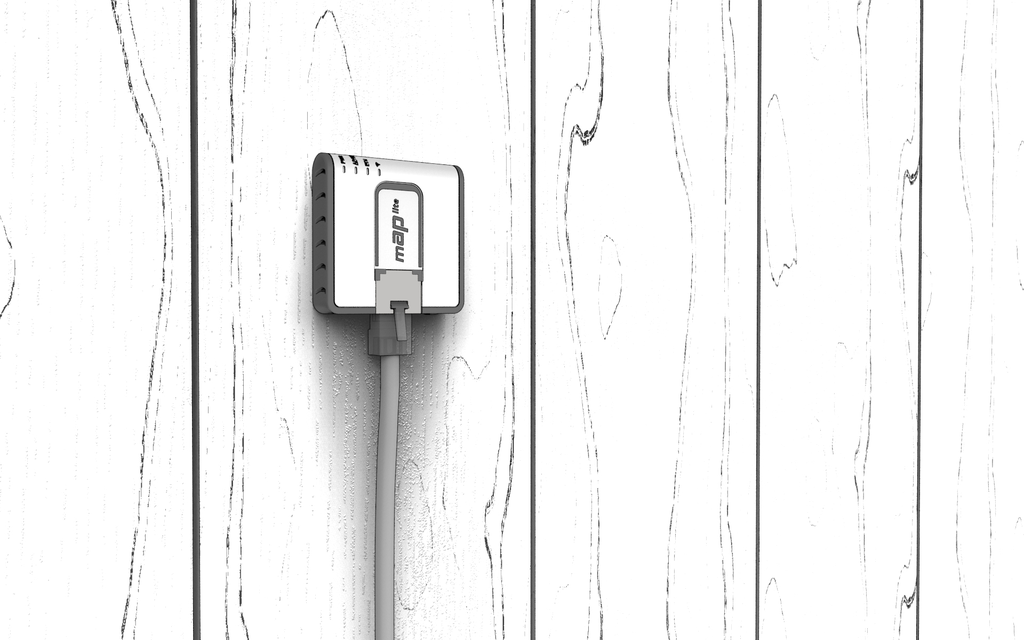

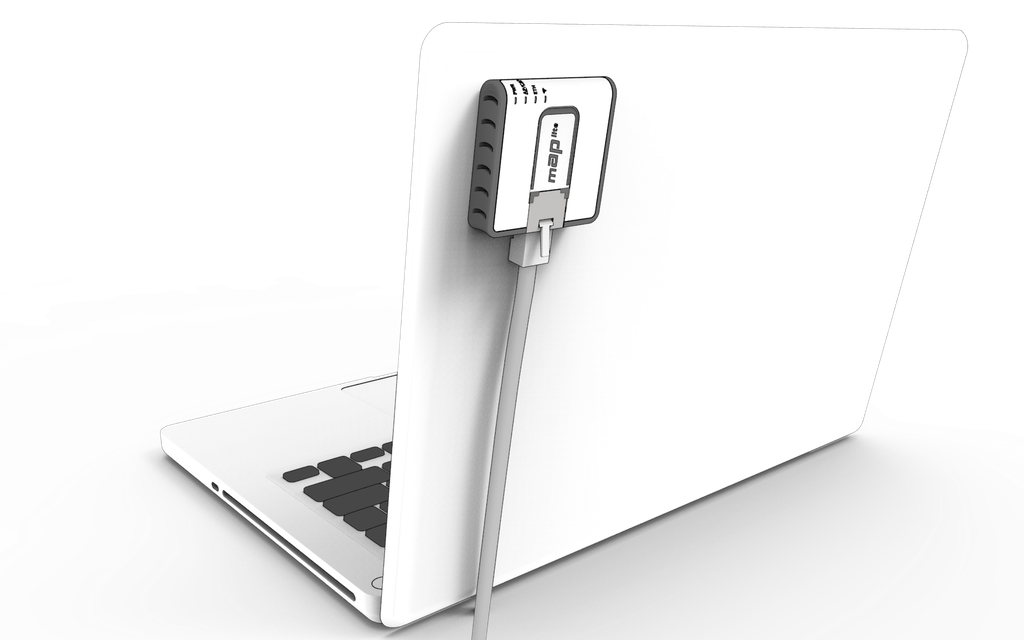

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.

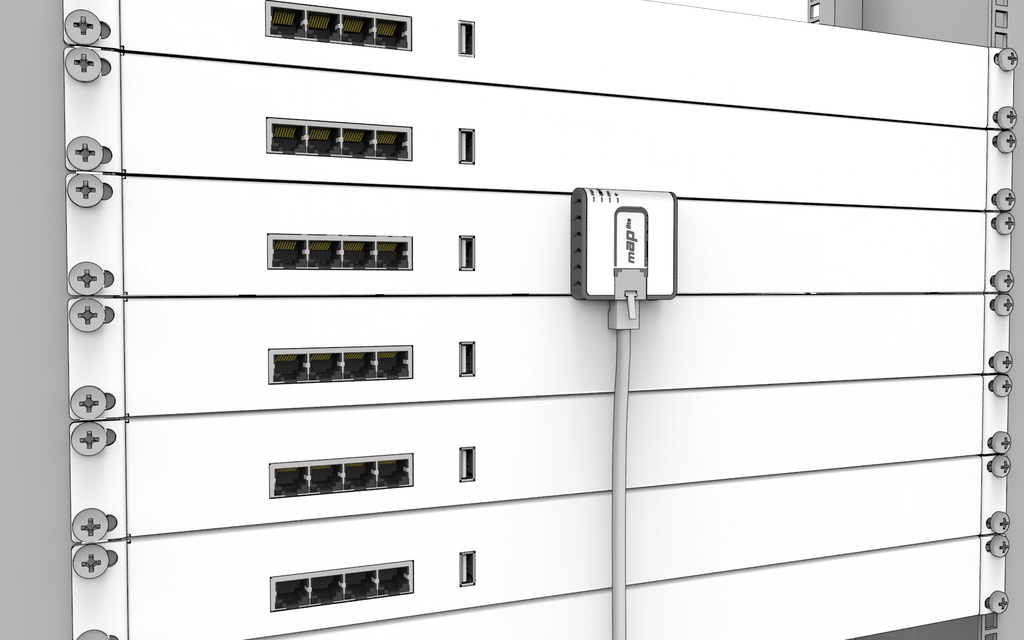

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.


The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.


The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


Specifications

Details
Product code RBmAPL-2nD
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 48x49x11mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -30°C to 70°C
Suggested price $30.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9533
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 1

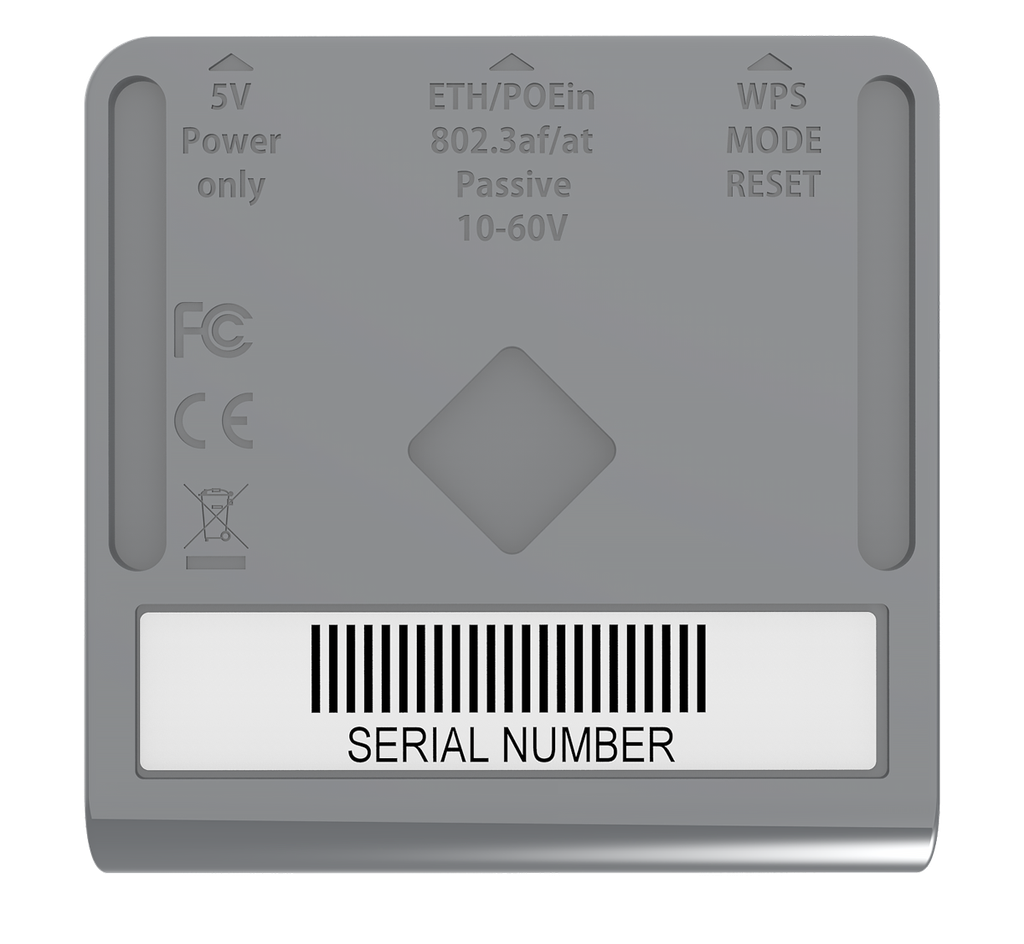

Powering

Details
MicroUSB input Voltage 5 V
Number of DC inputs 2 (PoE-IN, MicroUSB)
Max power consumption 3.5 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 10-60 V

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s22-96
11MBit/s22-89
6MBit/s20-93
54MBit/s18-74
MCS020-93
MCS716-71

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
Block DiagramOpen
PoE-IN compatibility listOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)
Declaration of conformityOpen (FCC)

High resolution images

Ethernet test results

RBmAPL-2nDQCA9533 100M one port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)8.198.423.596.3173.688.9
Bridging25 bridge filter rules8.198.423.596.382.242.1
Routingnone (fast path)8.198.423.596.3160.882.3
Routing25 simple queues8.198.423.596.3118.760.8
Routing25 ip filter rules8.198.423.596.353.927.6
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
