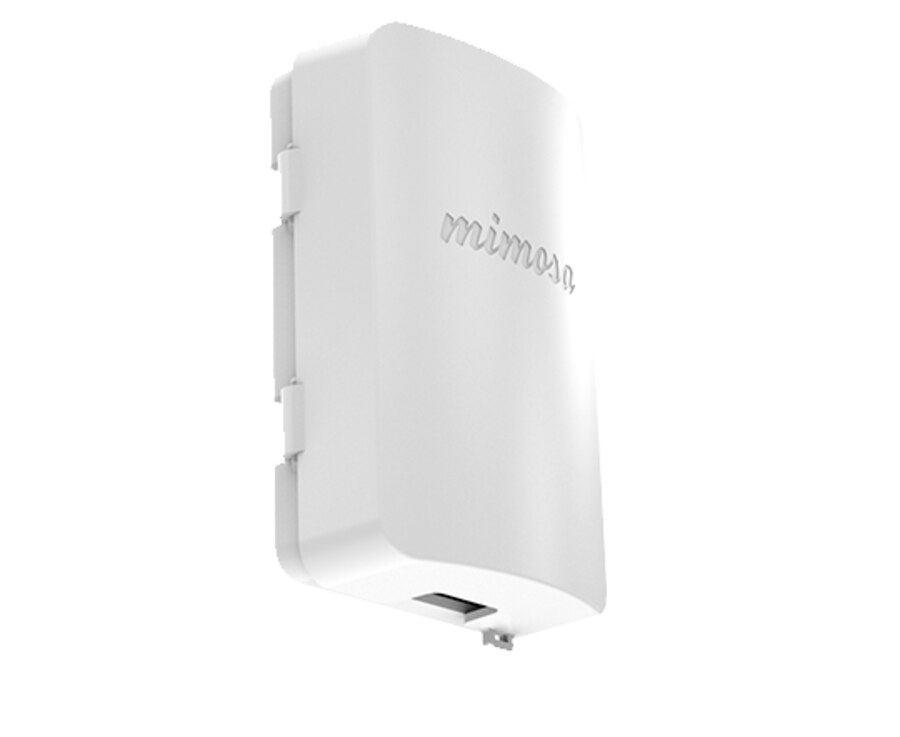

Mimosa Gigabit Network Interface Device
The sleek and affordable Mimosa Gigabit Network Interface Device (NID) is designed for exterior wall mounting, providing outdoor technician access, ESD protection and grounding point for C5 and C5c installation. The dust and water resistant design has a foam cable entry seal and a security fastener tie point.
Specifications NID
| Data Transfer Rate | Gigabit rated |
| Connectors | Two (2) RJ-45 |
| Protection Mode | Line-to-line and line-to-ground |
| Surge Arrestor | GTD (Gas Discharge Tube) |
| Nominal Voltage | 20V @ 1A |
| DC Sparkover | 90V @ 100V/s |
| Impulse Sparkover | 550V @ 1000V/µs |
| Impulse Discharge Current | 10kA |
| Capacitance | < 1.0pF @ 1 MHz |
| Dimensions | 42 mm (1.6”) x 131 mm (5.1”) x 84 mm (3.3”) |
| Weight | 0.13 kg (4.8 oz) |
| Operating Temperature | -40 to +55 C |
| Humidity | 5 to 100% condensing |
| Environmental Protection | IP54 (Dust and Water Intrusion Protection) |
| Mounting | Wall mount. Two screw mounting points for secure access to flat surface with optional rear feed point for clean installations. |
