5x Gigabit Ethernet Smart Switch, SFP cage, plastic case, SwOS

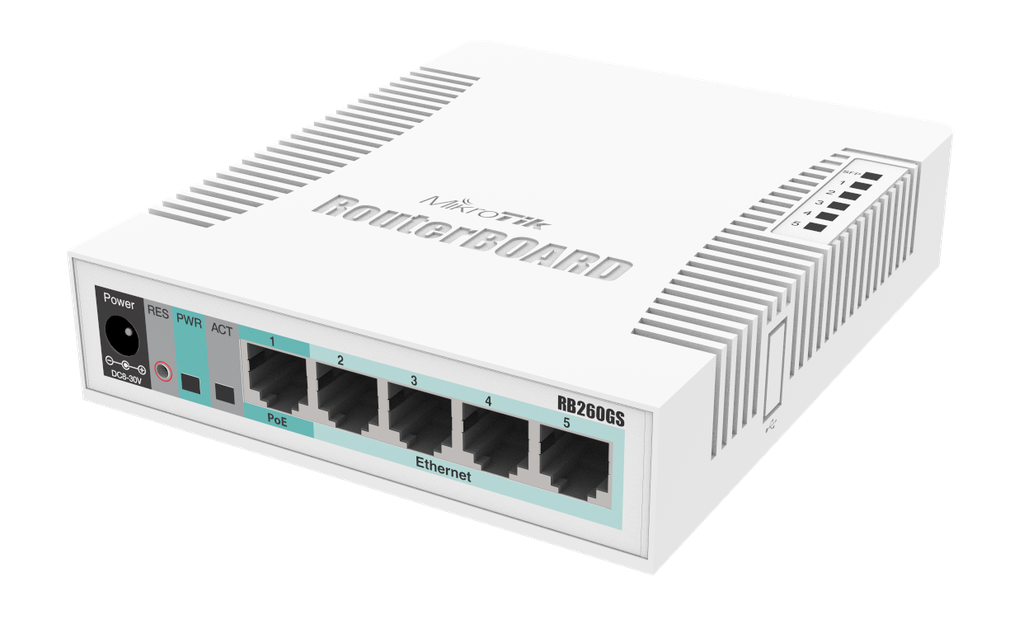

The RB260GS is a small SOHO switch. It has five Gigabit Ethernet ports and one SFP cage powered by an Atheros Switch Chip.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
It is powered by an operating system designed specifically for MikroTik Switch products - SwOS.
SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-port forwarding, apply MAC filter, configure
VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
| Details | |
|---|---|
| Product code | CSS106-5G-1S |
| Switch chip model | QCA8337 |
| Dimensions | 113x139x28mm |
| Operating System | MikroTik SwOS |
| Storage size | 128 KB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | $39.95 |
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-30 V |
| Max power consumption | 5 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
| CSS106-5G-1S | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 487.6 | 5,922.0 | 1,409.8 | 5,774.4 | 8,928.6 | 4,571.4 |
| Switching | Non blocking Layer 2 capacity | 487.6 | 11,844.0 | 1,409.8 | 11,548.9 | 8,928.6 | 9,142.9 |
| Switching | Non blocking Layer 1 throughput | 487.6 | 6,000.0 | 1,409.8 | 6,000.0 | 8,928.6 | 6,000.0 |
| Switching | Non blocking Layer 1 capacity | 487.6 | 12,000.0 | 1,409.8 | 12,000.0 | 8,928.6 | 12,000.0 |
