RB450Gx4

https://www.bi-distribution.com/web/image/product.template/10284/image_1920?unique=03b0e28

Four core 716MHz CPU, 1GB RAM, 5xGigabit Ethernet, PoE out on port #5, RouterOS L5

Login | Register to see price

Not Available For Sale

This combination does not exist.

Contact Us
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders

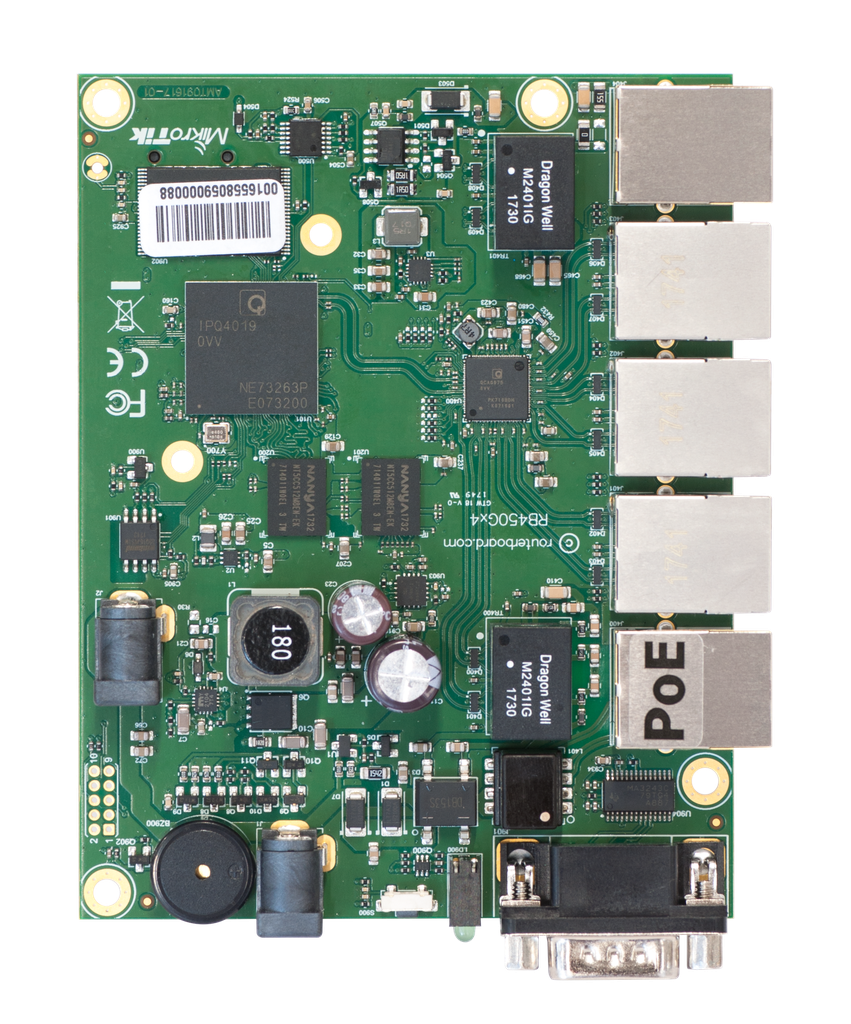

The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V - 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5.


It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures.


The device is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.


The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


Specifications

Details
Product code RB450Gx4
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 448-896 (auto) MHz
Switch chip model IPQ-4019
Dimensions 90 x 116 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $99.00

Powering

Details
Number of DC inputs 3 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max power consumption 16 W
Max power consumption without attachments 4 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 500 mA
Max out per port output (input 30-57 V) 500 mA
Max total out (A) 500 mA

Ethernet

Details
10/100/1000 Ethernet ports 5

Peripherals

Details
Memory card type microSD
Serial console port RS232

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP00
BrochureOpen
Quick GuideOpen
RouterOS current releaseDownload
RouterBoot firmware Download
General FileOpen
Design filesOpen
Mounting dimensionsOpen
Block DiagramOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

RB450Gx4IPQ-4019 1G all port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)162,51973.4469,91924.71488,4762.1
Bridging25 bridge filter rules162,51973.4351,21438.5352,1180.3
Routingnone (fast path)162,51973.4469,91924.71488,4762.1
Routing25 simple queues162,51973.4468,61919.4493,4252.6
Routing25 ip filter rules162,51973.4222,8912.6227,4116.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB450Gx4IPQ-4018 IPsec throughput
ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
