RB912UAG-2HPnD

https://www.bi-distribution.com/web/image/product.template/10281/image_1920?unique=03b0e28

600MHz CPU, 64MB RAM, 1xGigabit Ethernet, onboard 2.4Ghz wireless, miniPCI-express, USB, SIM slot, RouterOS L4

Login | Register to see price

Not Available For Sale


This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

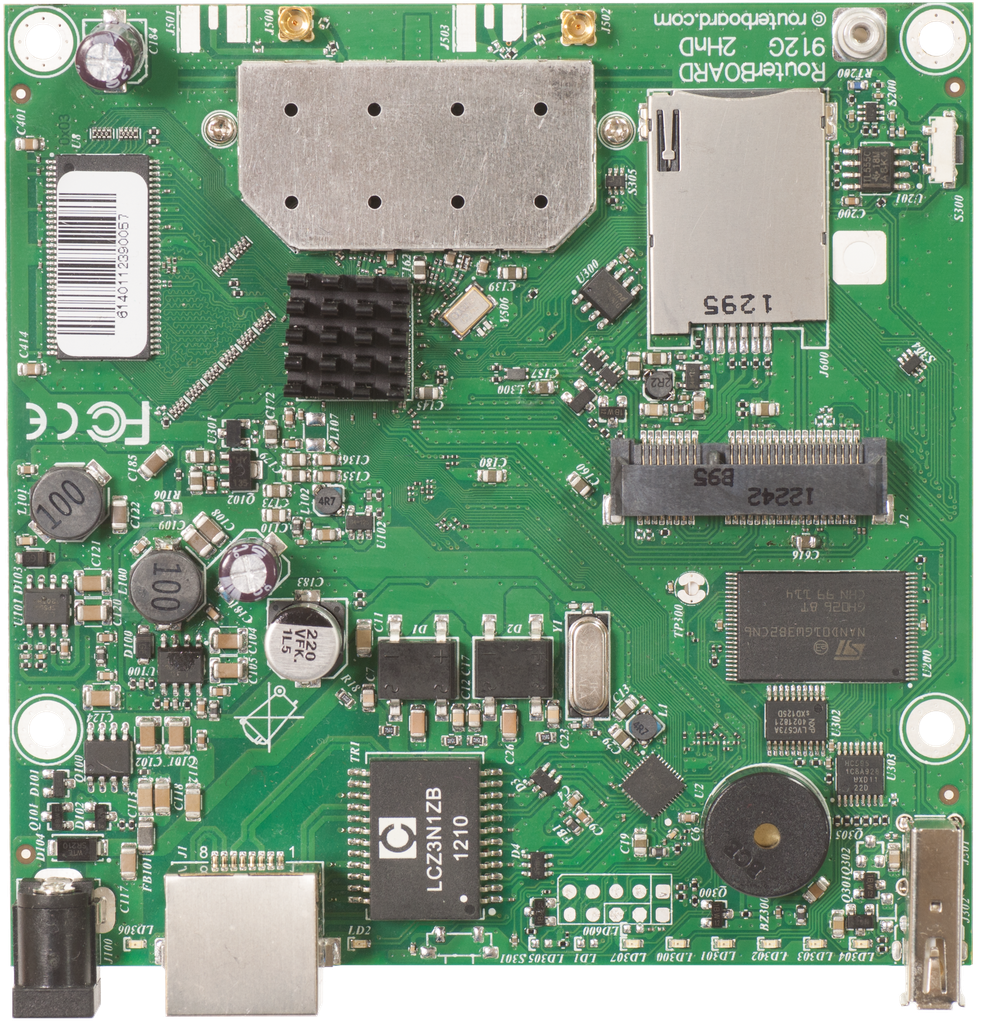

The RB912UAG-2HPnD is a very versatile device. It is a small wireless router with an integrated 2.4GHz high-power wireless card and an additional miniPCIe slot for 802.11 wireless card, mobile card, or LoRa solutions. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

It has built-in 16kV ESD protection on both the Ethernet and the MMCX ports.


The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


Specifications

Details
Product code RB912UAG-2HPnD
Architecture MIPSBE
CPU AR9342
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 105x105mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $79.00

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 8-30 V
Max power consumption 13.5 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Wireless 2.4 GHz chip model AR9342
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification FCC, IC
IP IP00

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s30-100
11MBit/s30-94
6MBit/s30-96
54MBit/s27-78
MCS030-96
MCS724-73
BrochureOpen
Quick GuideOpen
User ManualOpen
RouterBoot firmware Download
Design filesOpen
Block DiagramOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)
Declaration of conformityOpen (FCC)

High resolution images

Ethernet test results

RB912UAG-2HPnDAR9342 1G 1 port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)81.0983.7232.0950.3269.6138.0
Bridging25 bridge filter rules81.0983.786.0352.387.644.9
Routingnone (fast path)81.0983.7210.0860.2226.9116.2
Routing25 simple queues81.0983.7103.9425.6106.654.6
Routing25 ip filter rules56.8689.859.6244.160.531.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
