802.11ac up to 540Mbit, high output, wide beamwidth sector antenna
The new AC standard is here, with up to 866Mbit over the air datarate, 256-QAM modulation, and 80MHz channels. 802.11a/n/ac opens up new possibilities and speeds never possible before.

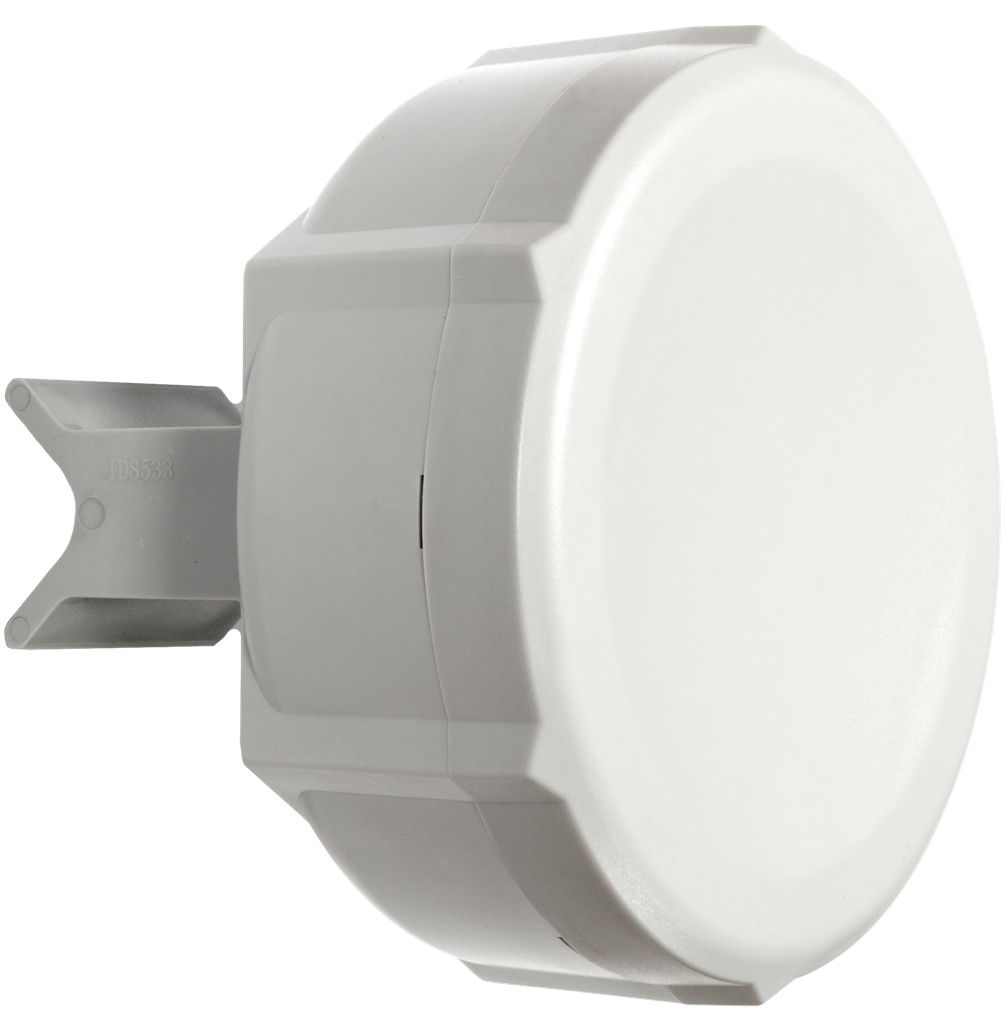

The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam - width sector antenna. Also support 802.11a/n standard, Nstreme and Nv2 protocols and are compatible with all legacy RouterBOARD devices. Both devices come with Gigabit Ethernet.
New products are backwards compatible - for example, you can replace your 5GHz 802.11a/n legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.

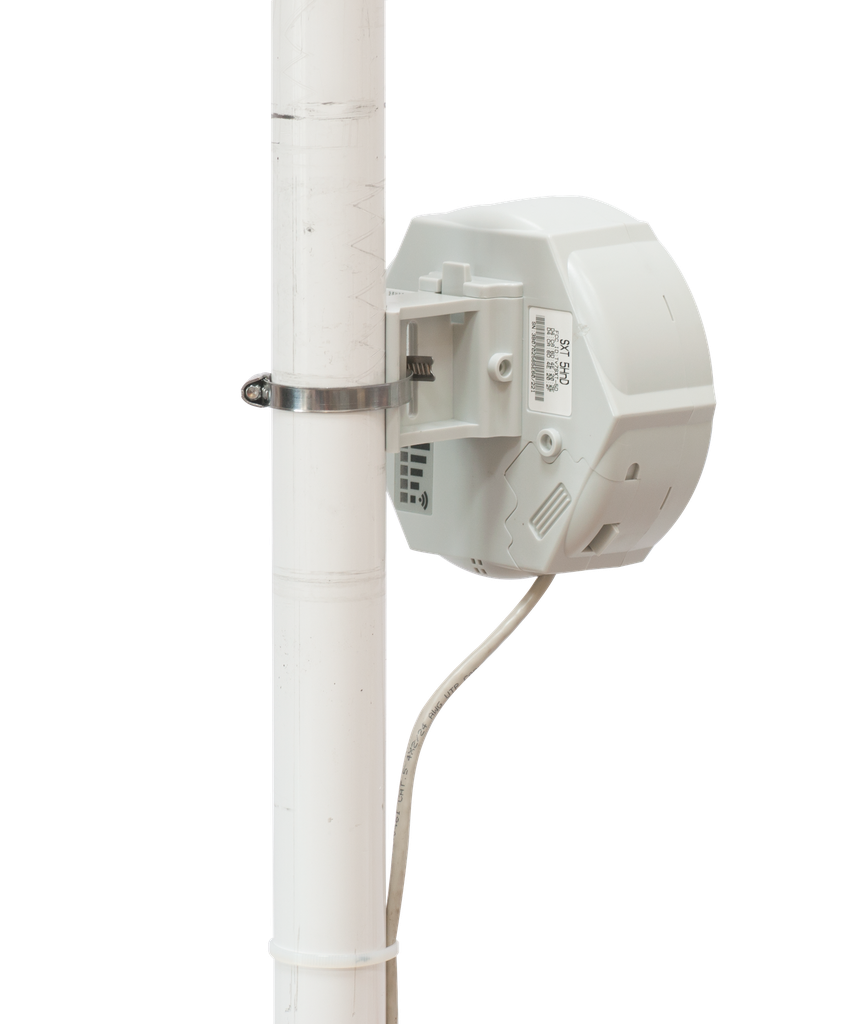

SXT install guide:
- RBSXTG-5HPacD-SAr2-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RBSXTG-5HPacD-SAr2 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
| Details | |
|---|---|
| Product code | RBSXTG-5HPacD-SA |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $119.00 |
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Supported Voltage | 15-60V |
| Max power consumption | 12 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 14 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 28 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
| RBSXTG-5HPacD-SAr2 | QCA9557 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 477.7 | 244.6 |
| Bridging | 25 bridge filter rules | 81.2 | 986.1 | 118.4 | 485.0 | 119.5 | 61.2 |
| Routing | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 408.2 | 209.0 |
| Routing | 25 simple queues | 81.2 | 986.1 | 158.3 | 648.4 | 165.8 | 84.9 |
| Routing | 25 ip filter rules | 64.8 | 786.9 | 70.4 | 288.4 | 60.9 | 31.2 |
