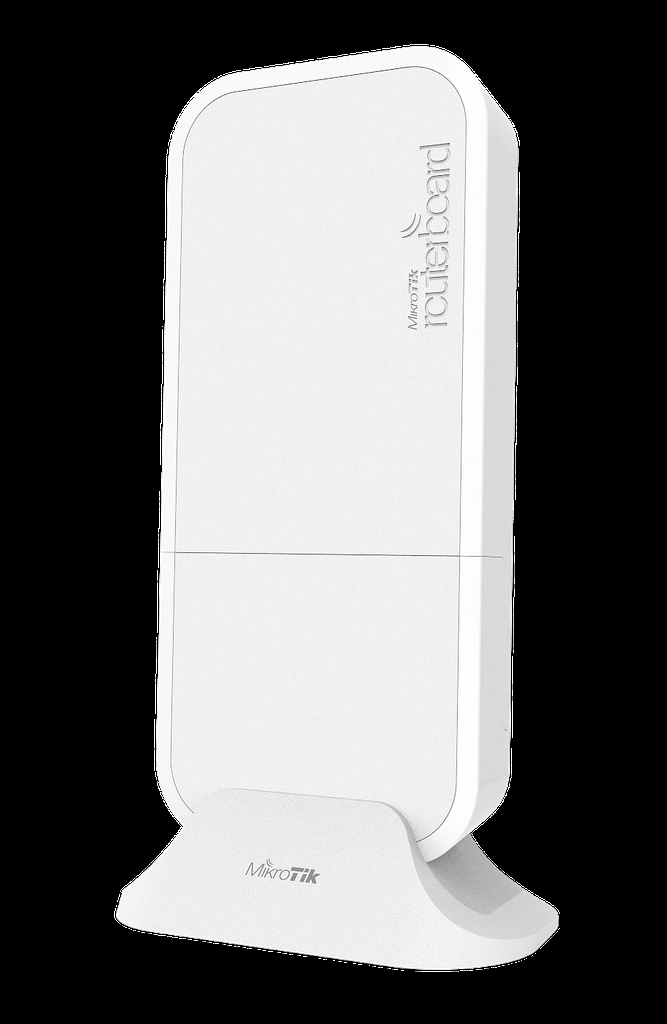

wAP 60G

https://www.bi-distribution.com/web/image/product.template/10269/image_1920?unique=03b0e28

60 GHz CPE with Phase array 60° beamforming Integrated antenna, 716 Mhz CPU, 256 MB RAM, PSU and PoE, RouterOS L3

Login | Register to see price

Not Available For Sale

This combination does not exist.

Contact Us
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders

The wAP 60G is weatherproof integrated 60 GHz wireless unit, that can be used indoors or outdoors as Point-to-Point or CPE unit

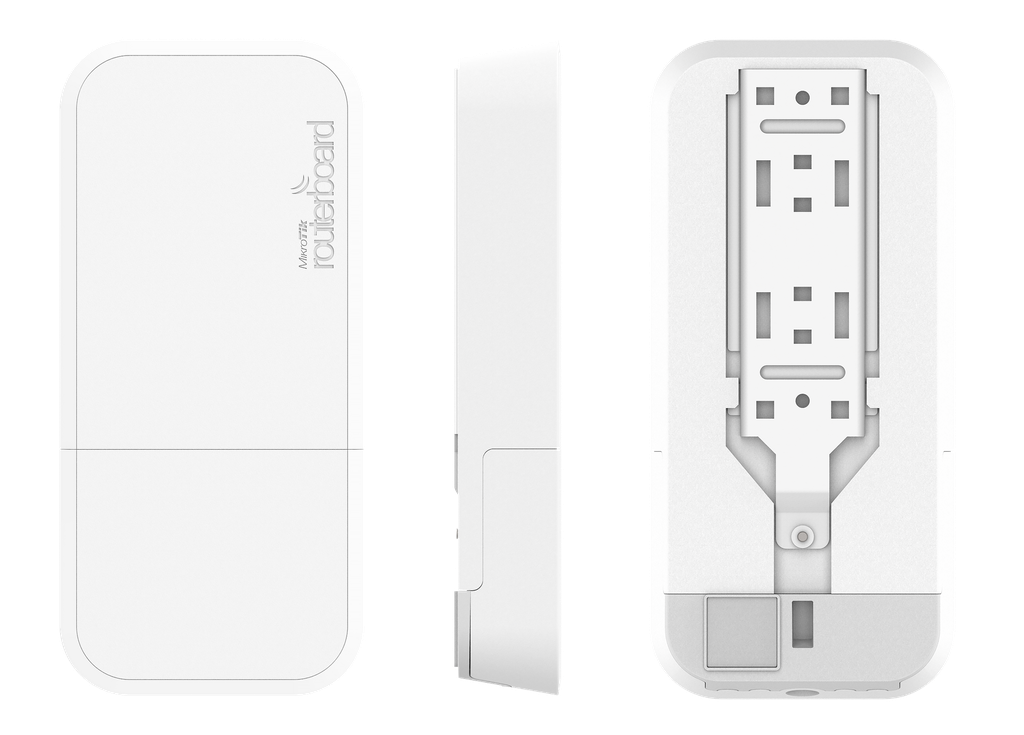

The box includes a wall mounting kit, straps for pole mounting, power supply, PoE injector and also table stand for using the device indoors. Penetrates some windows depending on material.


wAP 60G connects to 60 GHz AP for distances of 200m+


The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


Specifications

Details
Product code RBwAPG-60ad
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 448-896 (auto) MHz
Dimensions 185 x 85 x 30 mm
RouterOS license 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $114.00

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 12-57 V
Max power consumption 5 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

Ethernet

Details
10/100/1000 Ethernet ports 1

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 55

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current release
Selection guide for PtMP linksOpen
Selection guide for PtP linksOpen
Block DiagramOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

RBwAPG-60adIPQ-4019 1G one port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)81,2986.1234,9962.21482,6759.1
Bridging25 bridge filter rules81,2986.1227,7932.7231,9118.7
Routingnone (fast path)81,2986.1235,1963.01421,8728.0
Routing25 simple queues81,2986.1235,1963.0458,3234.6
Routing25 ip filter rules81,2986.1234,9962.2236,8121.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RBwAPG-60adIPQ-4018 IPsec throughput
ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
