CRS317-1G-16S+RM

https://www.bi-distribution.com/web/image/product.template/10185/image_1920?unique=03b0e28

Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies

Login | Register to see price

Not Available For Sale

This combination does not exist.

Contact Us
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders

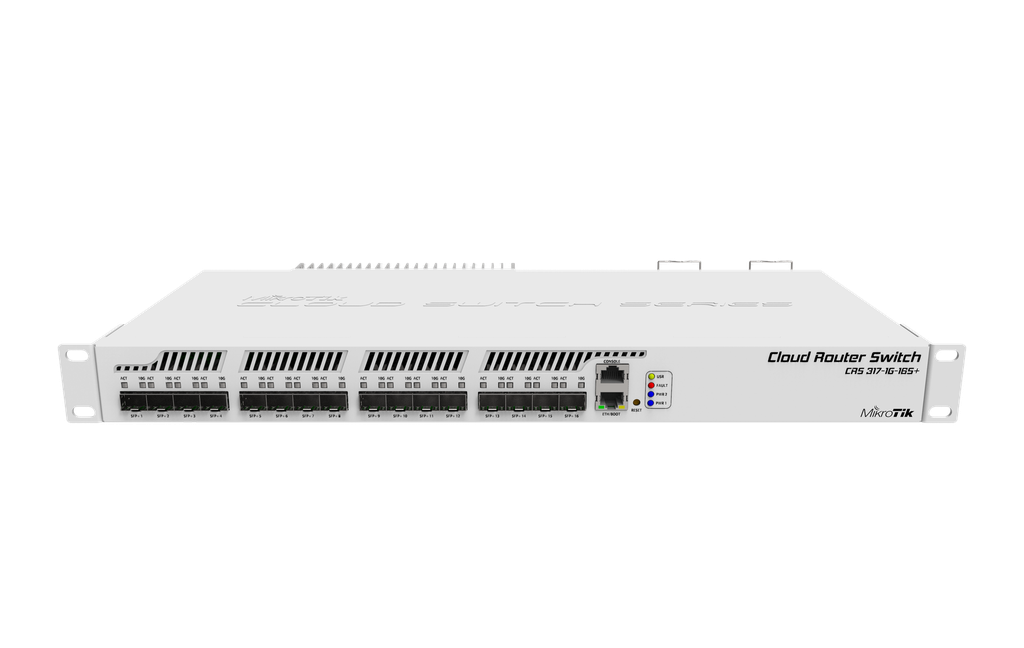

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.


CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

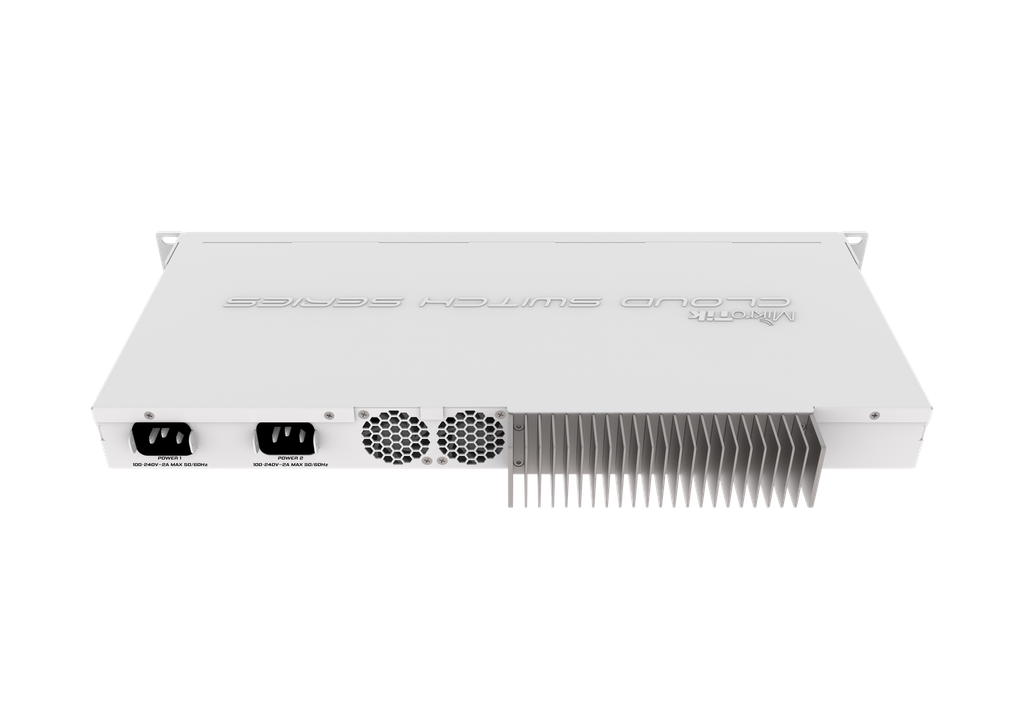

The unit has dual redundant power supplies and passive cooling case - for hot environments two redundant fans will automatically keep the system cool if needed.


The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


Specifications

Details
Product code CRS317-1G-16S+RM
Architecture ARM 32bit
CPU 98DX8216
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 98DX8216
Dimensions 443 x 224 x 44 mm
RouterOS license 6
Operating System RouterOS / SwitchOS
Size of RAM 1 GB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
Suggested price $499.00

Powering

Details
Number of AC inputs 2
AC input range 100-240
Number of PSU slots 2
Frequency (Hz) 50-60
Max power consumption 44 W
Cooling type 2 fans

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP+ ports 16

Peripherals

Details
Serial console port RJ45

Other

Details
CPU temperature monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
RouterBoot firmware Download
Block DiagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
SwOS software manualOpen
Declaration of conformityOpen (CE)

High resolution images

Switching results

CRS317-1G-16S+RM
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 13,085.2 158,906.4 37,828.9 154,947.4 239,583.3 122,666.7
Switching Non blocking Layer 2 capacity 13,085.2 317,812.7 37,828.9 309,894.7 239,583.3 245,333.3
Switching Non blocking Layer 1 throughput 13,085.2 161,000.0 37,828.9 161,000.0 239,583.3 161,000.0
Switching Non blocking Layer 1 capacity 13,085.2 322,000.0 37,828.9 322,000.0 239,583.3 322,000.0

Ethernet test results

CRS317-1G-16S+RM98DX8216B0 all port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)268.33258.2361.21479.5355.2181.9
Bridging25 bridge filter rules98.41195.098.6403.99850.2
Routingnone (fast path)254.43089.4309.81268.9315.4161.5
Routing25 simple queues104.61270.3104.4427.6104.653.6
Routing25 ip filter rules104.61270.3103.4423.5103.953.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
