Effortlessly split a single high-power PoE port into multiple standard PoE connections with the compact and durable GPeR14i. Expand, extend, and power your network with ease!

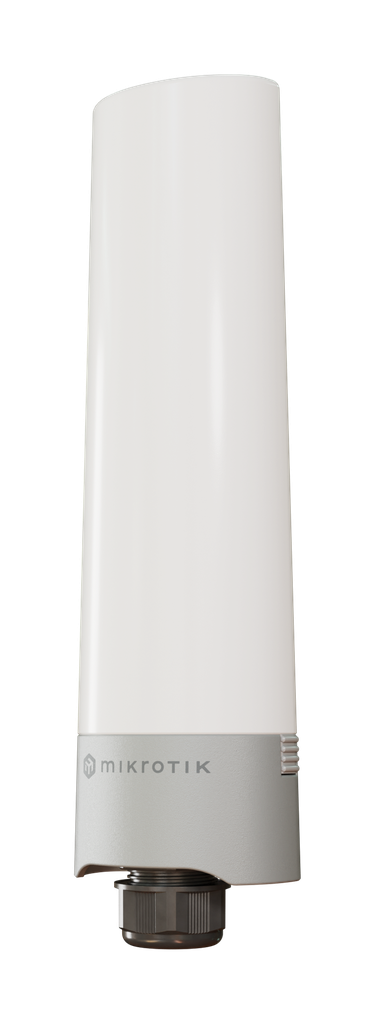

The GPeRx4 is not your average Ethernet extender. This compact, outdoor-ready device is designed to split* a single 90W PoE-out port into multiple 30W PoE-out ports, providing cost-effective flexibility for powering cameras, access points, and other devices.
Take advantage of your high-power PoE-out port by splitting it into three standard PoE-out connections, ideal for adding more devices without upgrading your switch.

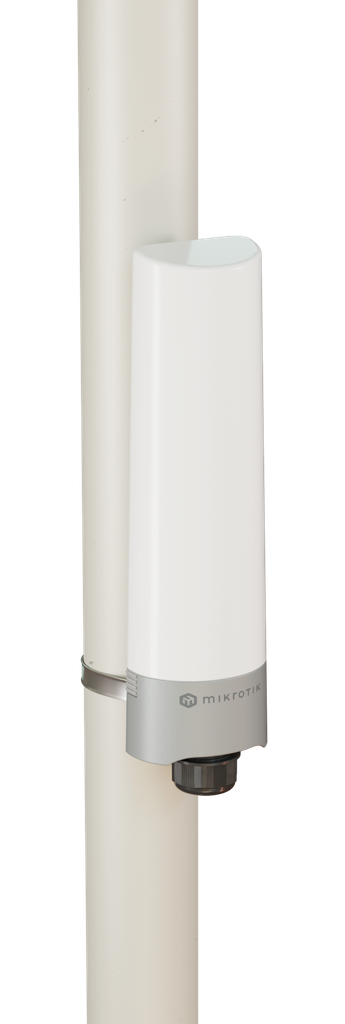

Housed in a robust enclosure, the GPeRx4 can handle tough environments, making it the perfect choice for outdoor setups.
Supports PoE-in and a 2-pin terminal, ensuring versatility for different power sources.
Manage your network effortlessly via Web with SwOS Lite, providing:
| Details | |
|---|---|
| Product code | GPER14i |
| 10/100/1000 Ethernet ports | 4 |
| 2-pin terminal input Voltage | 24-57 V |
| CPU nominal frequency | 200 MHz |
| Can be used outdoors | Yes |
| Certification | CE, EAC, ROHS |
| IP | 68 |
| Max out per port output (input 18-30 V) | 0.7 A |
| Max out per port output (input 30-57 V) | 0.6 A |
| Max power consumption | 115 W |
| Max power consumption without attachments | 4 W |
| Max total out (A) | 2.0 A |
| Number of 1G Ethernet ports with PoE-out | 3 |
| Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
| PoE in | 802.3 bt |
| PoE in input Voltage | 48-57 V |
| PoE out | 802.3af/at |
| PoE-out ports | Ether2-Ether4 |
| Storage size | 64 KB |
| Storage type | FLASH |
| Switch chip model | 88E6341 |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $59 |
| GPER14i | |||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 325.1 | 3948.0 | 939.8 | 3849.4 | 5952.4 | 3047.6 |
| Switching | Non blocking Layer 2 capacity | 325.1 | 7896.0 | 939.8 | 7698.8 | 5952.4 | 6095.2 |
| Switching | Non blocking Layer 1 throughput | 325.1 | 4000.0 | 939.8 | 4000.0 | 5952.4 | 4000.0 |
| Switching | Non blocking Layer 1 capacity | 325.1 | 8000.0 | 939.8 | 8000.0 | 5952.4 | 8000.0 |
