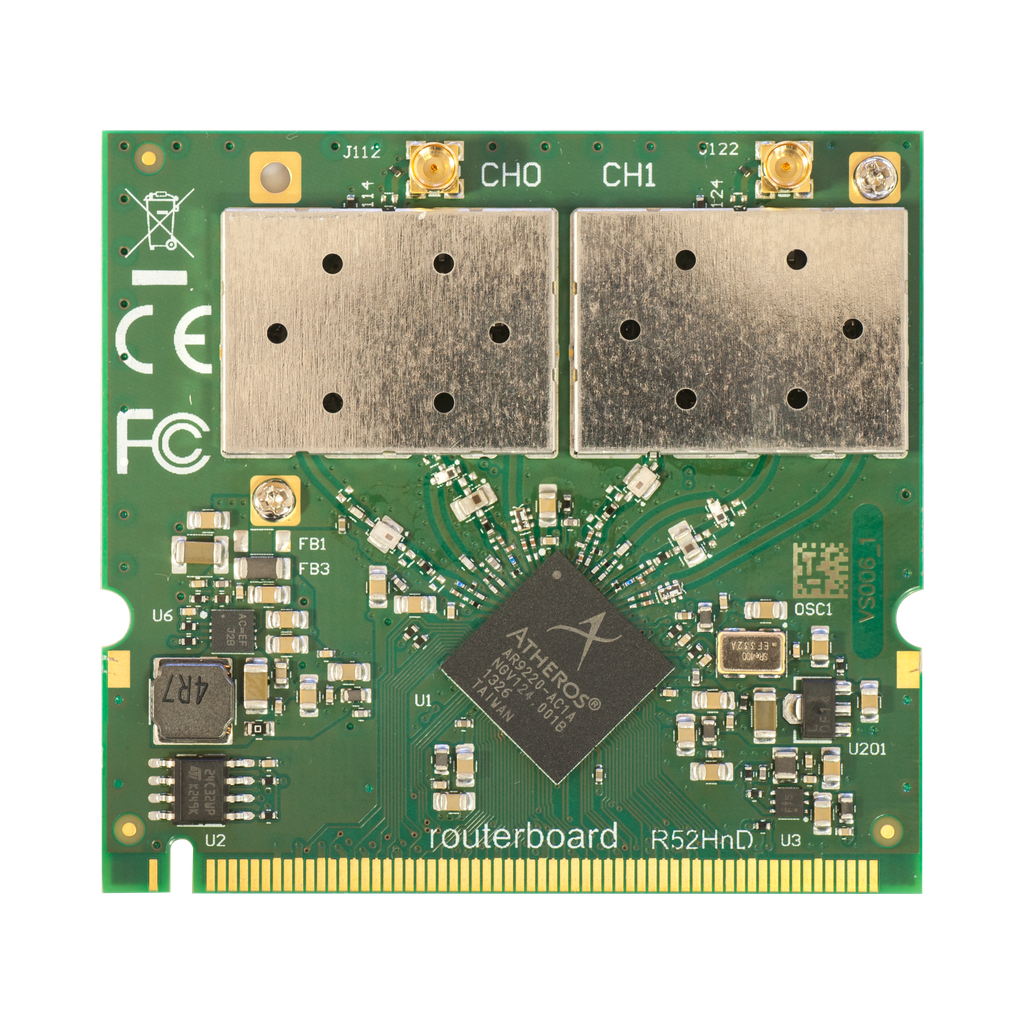

R52HnD
2.4/5Ghz miniPCI 802.11a/b/g/n dual chain, 2x MMCX
100% original guarantee
Return within 30days
Free delivery on all orders
The R52HnD is an update to our popular R52Hn miniPCI wireless card. It works in either 2.4 or 5GHz and now has even higher power and improved ESD protection (+/- 15 kV)
Product specifications
| Details | |
|---|---|
| Product code | R52HnD |
| 2GHz | Yes |
| 5GHz | Yes |
| Antenna header count | 2 |
| Certification | FCC, IC |
| Chipset | AR9220 |
| Connector | MMCX |
| Format | miniPCI |
| IP | IP00 |
| Max power consumption | 7 W |
| Output power | 400mW |
| RouterOS compatibility | Yes |
| Tested ambient temperature | -40 ... +70C |
| Wi-Fi generation | Wi-Fi 4 |
| Wireless 2.4 GHz/5 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz/5 GHz chip model | AR9220 |
| Wireless 2.4 GHz/5 GHz generation | Wi-Fi 4 |
| Wireless 2.4 GHz/5 GHz number of chains | 2 |
| Wireless 2.4 GHz/5 GHz standards | 802.11a/b/g/n |
| Wireless standards | 802.11a/b/g/n |
| Suggested price | $59 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 26 | -100 |
| 11MBit/s | 26 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 23 | -96 |
| MCS7 | 23 | -78 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 23 | -96 |
| MCS7 | 21 | -78 |
