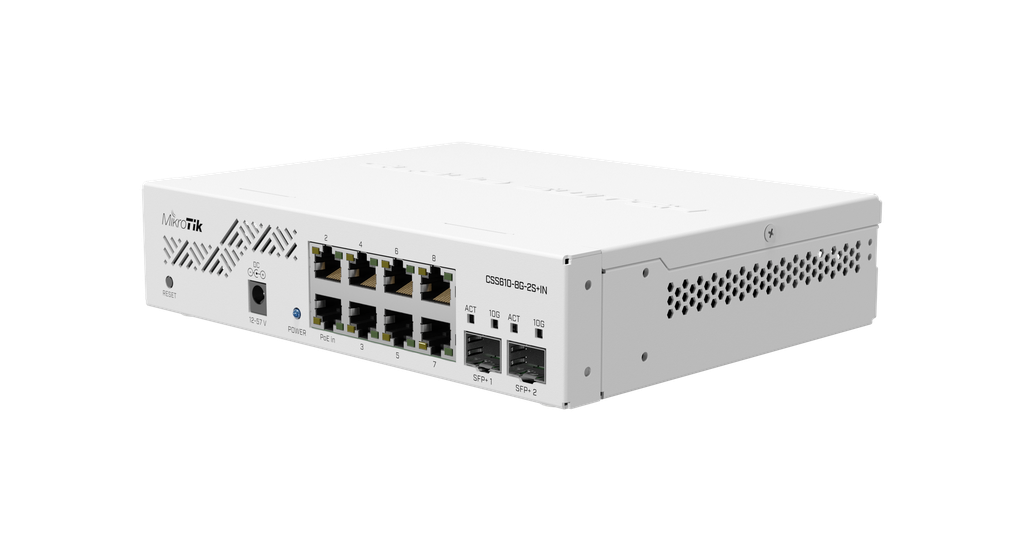

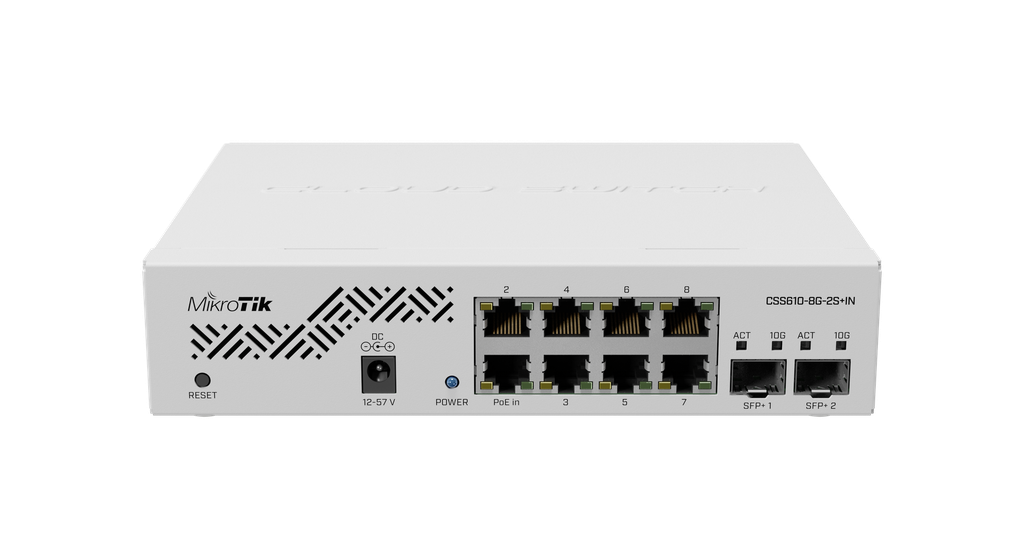

Eight 1G Ethernet ports and two SFP+ ports for 10G fiber connectivity. Portable, powerful and extremely cost-effective – this switch is an instant classic!
Cloud Smart Switch 610-8G-2S+IN is our answer to the everlasting demand for more power in a small and simple package. It comes with the lightweight SwOS which is easy to configure from your web browser. It gives you all the basic functionality for a managed switch, and more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
| Details | |
|---|---|
| Product code | CSS610-8G-2S+IN |
| Switch chip model | 88E6193X |
| Dimensions | 200 x 164 x 44 mm |
| Operating System | SwitchOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| Suggested price | $119.00 |
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 11 W |
| Max power consumption without attachments | 5 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
| Details | |
|---|---|
| SFP+ ports | 2 |
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
| CSS610-8G-2S+IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 2,275.7 | 27,635.9 | 6,578.9 | 26,947.4 | 41,666.7 | 21,333.3 |
| Switching | Non blocking Layer 2 capacity | 2,275.7 | 55,271.8 | 6,578.9 | 53,894.7 | 41,666.7 | 42,666.7 |
| Switching | Non blocking Layer 1 throughput | 2,275.7 | 28,000.0 | 6,578.9 | 28,000.0 | 41,666.7 | 28,000.0 |
| Switching | Non blocking Layer 1 capacity | 2,275.7 | 56,000.0 | 6,578.9 | 56,000.0 | 41,666.7 | 56,000.0 |
